Corrugated Roofing and Wall Panels

Available in many different materials. Custom made to any width or length.

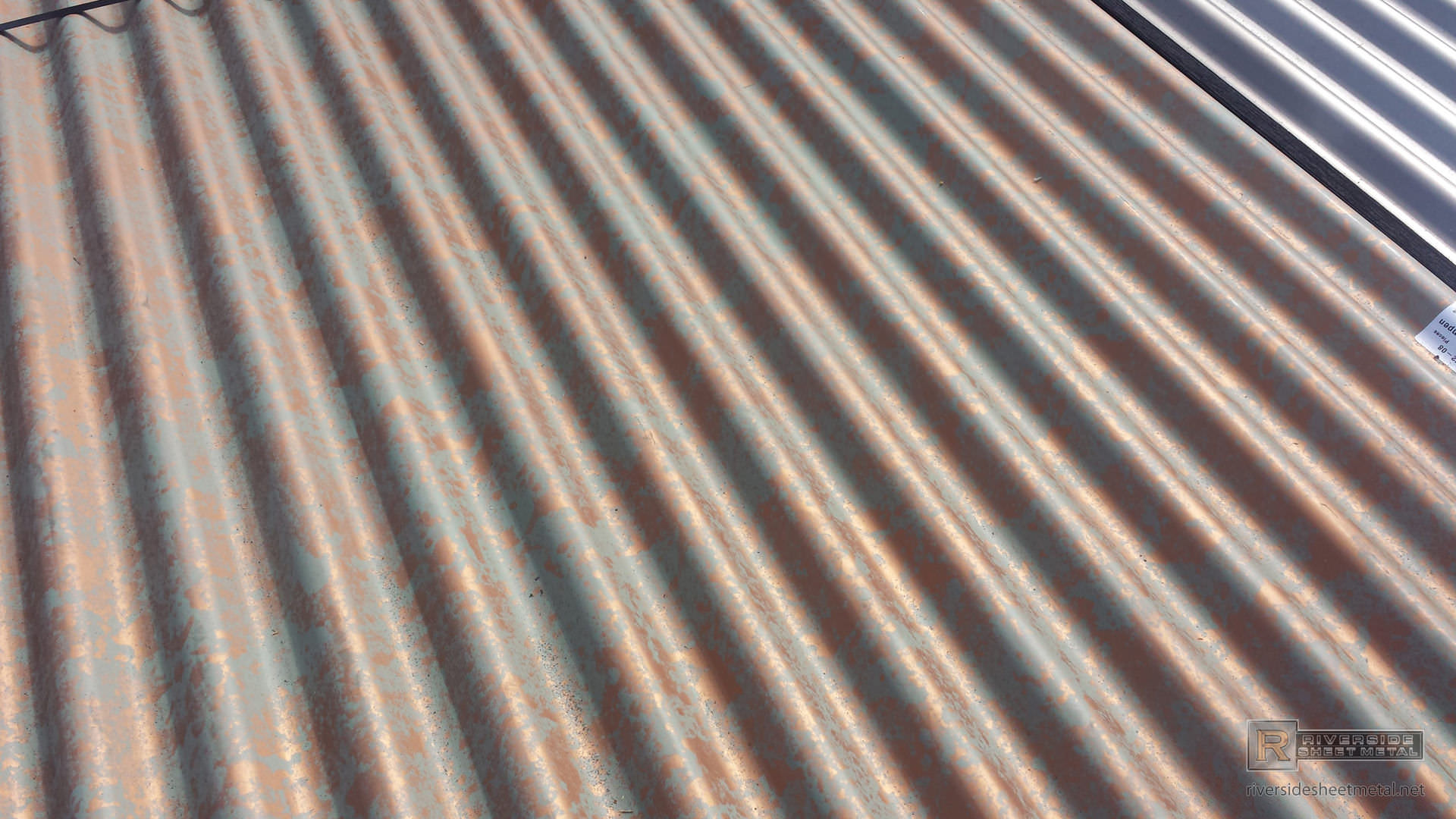

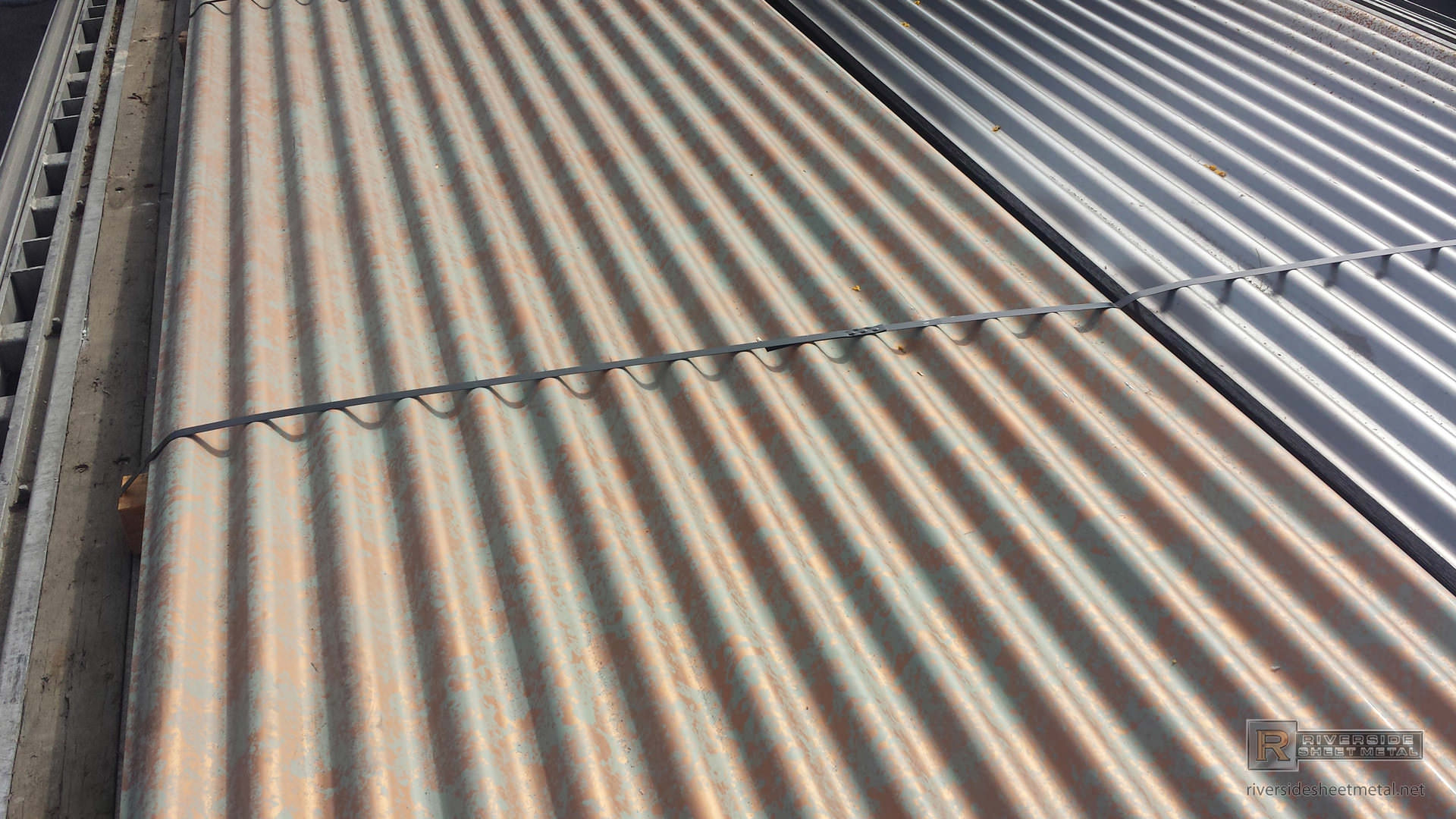

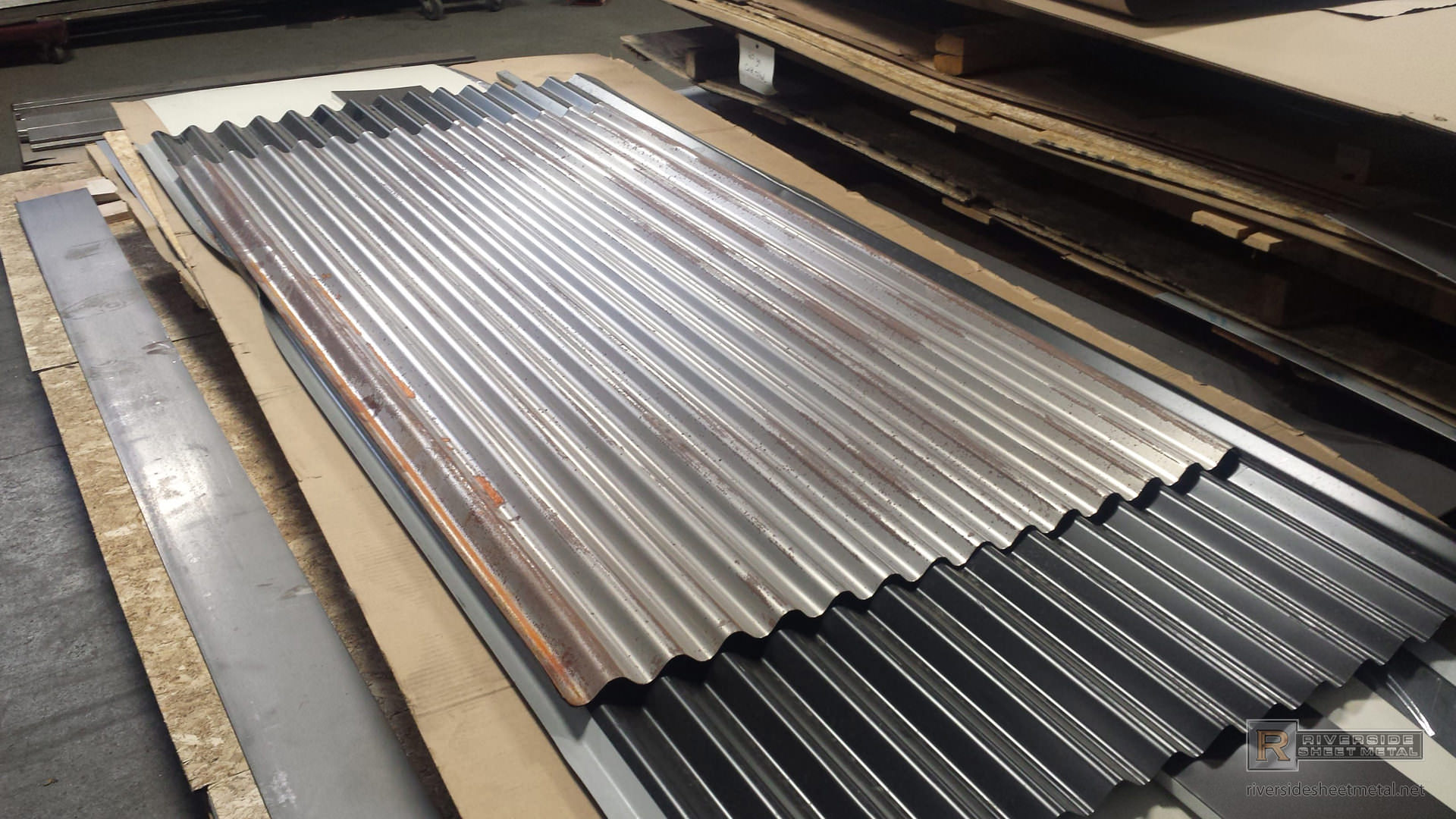

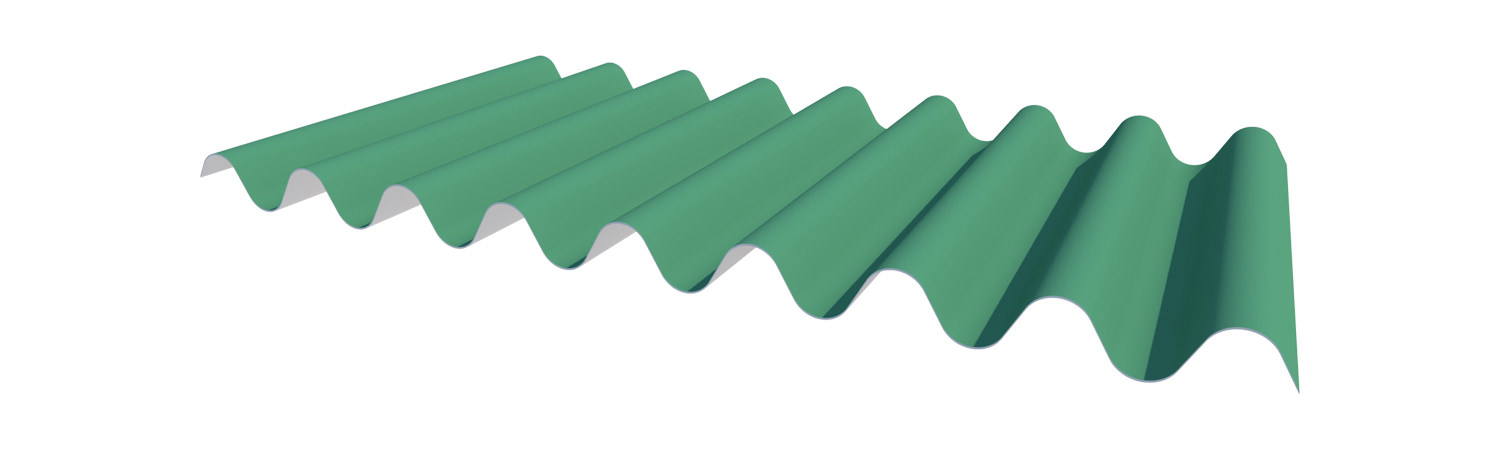

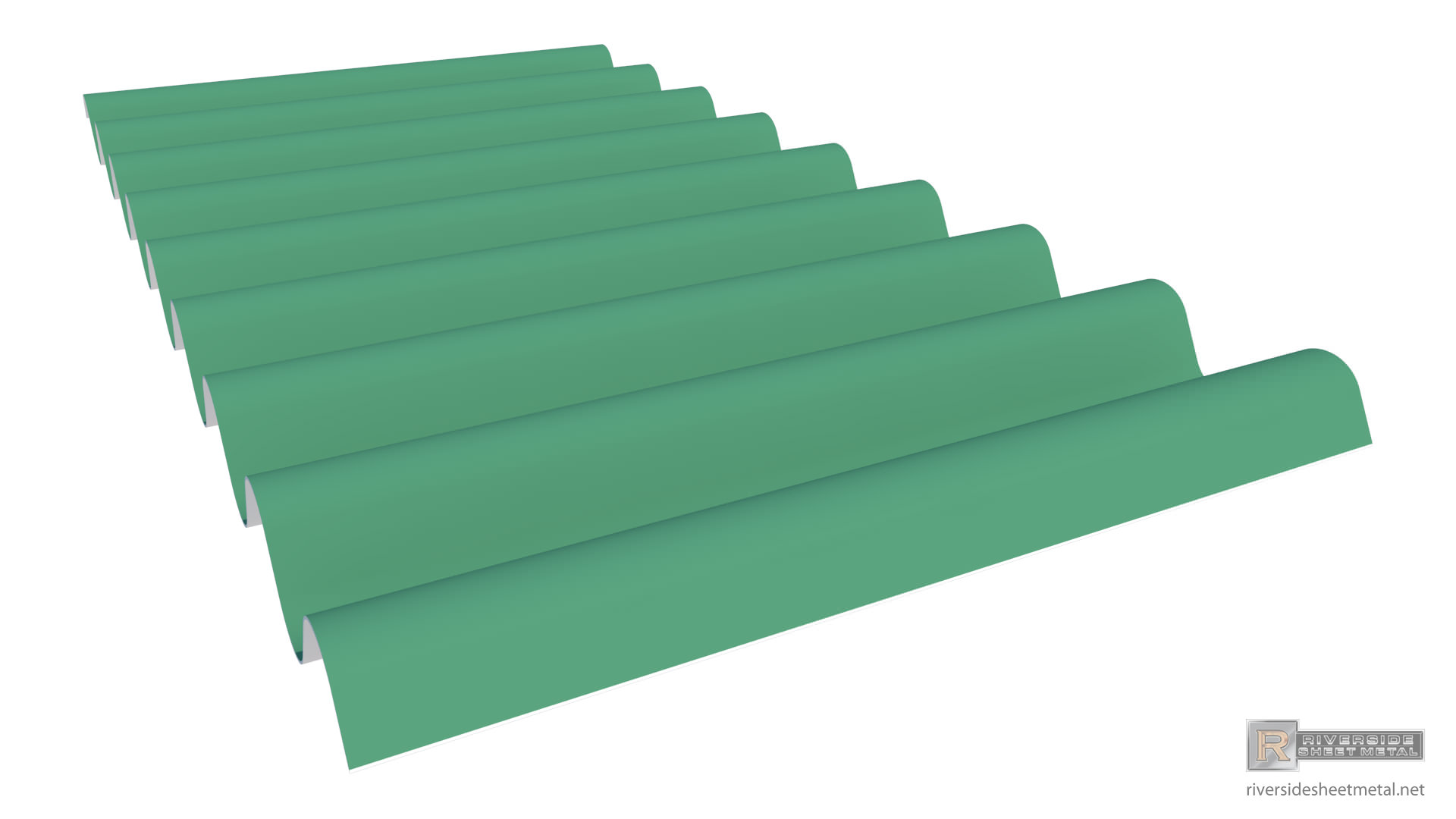

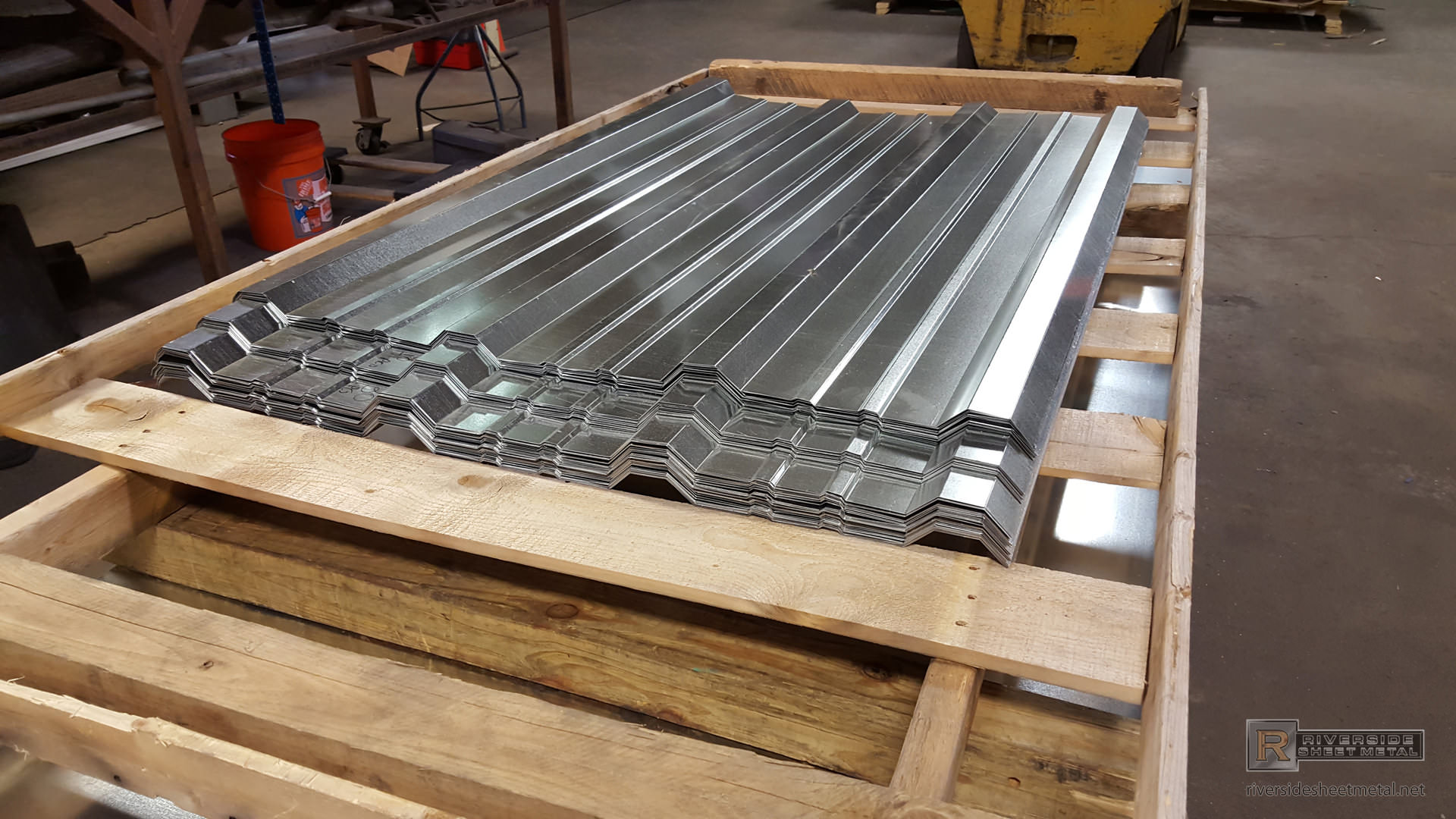

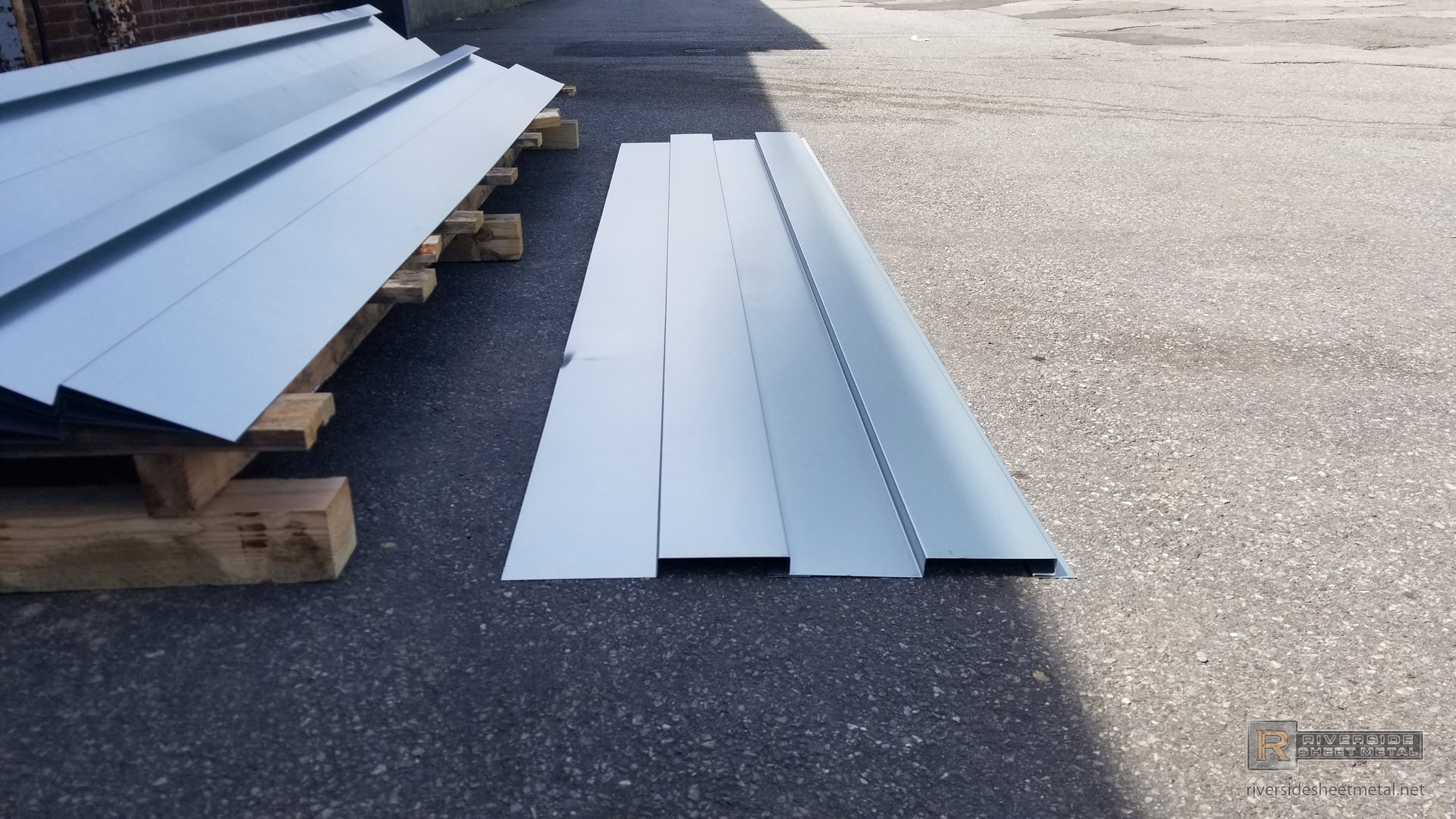

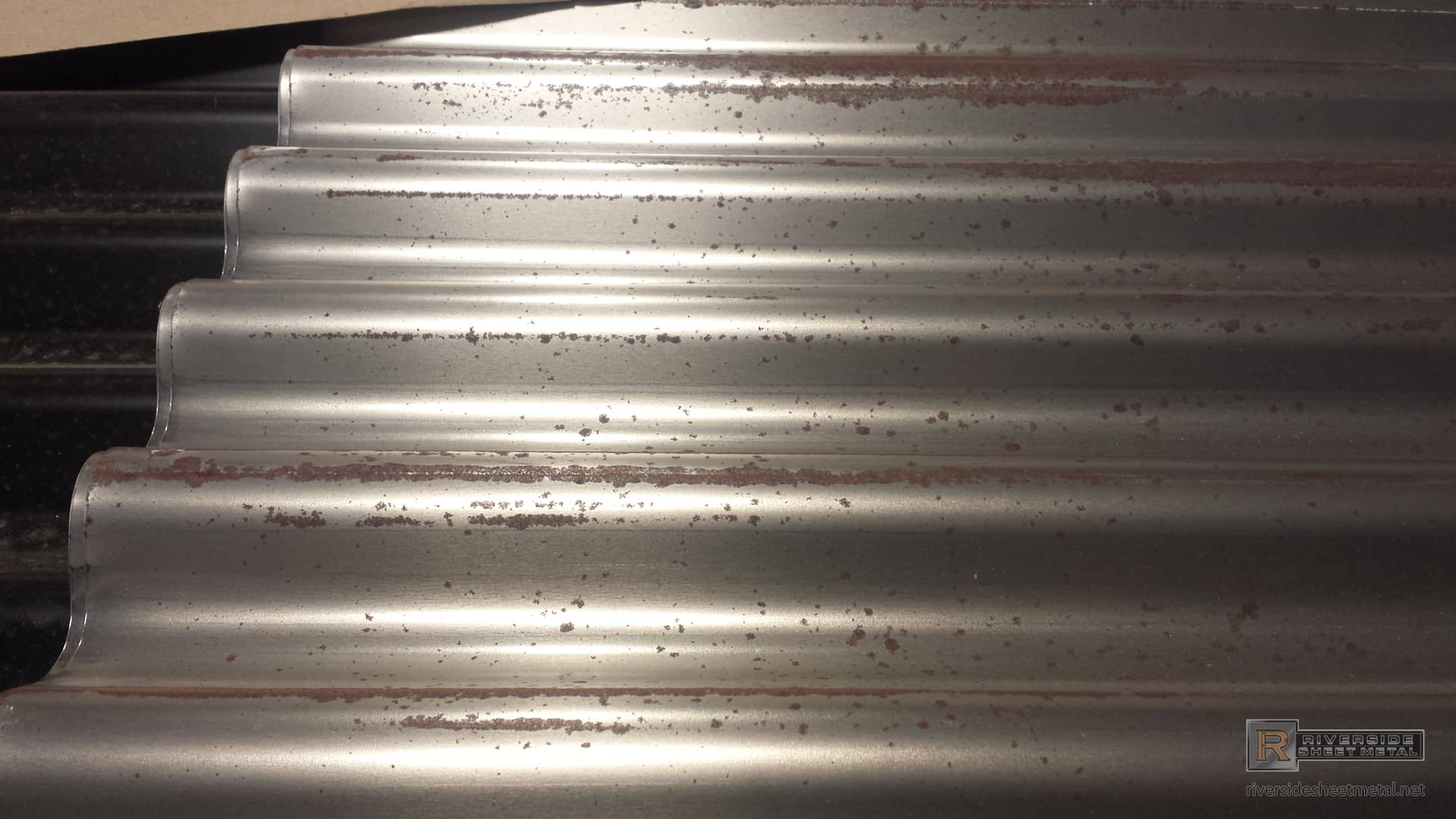

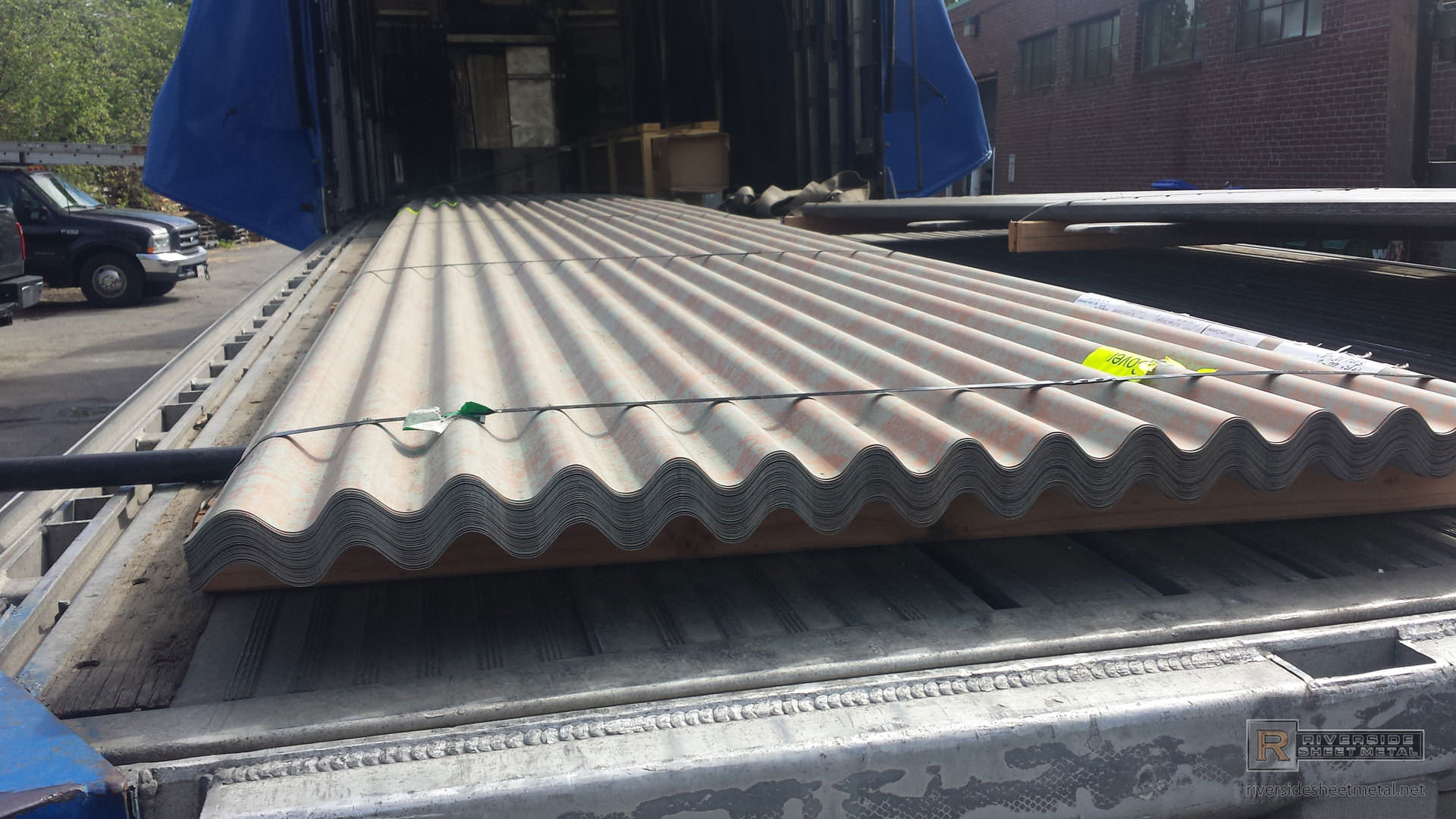

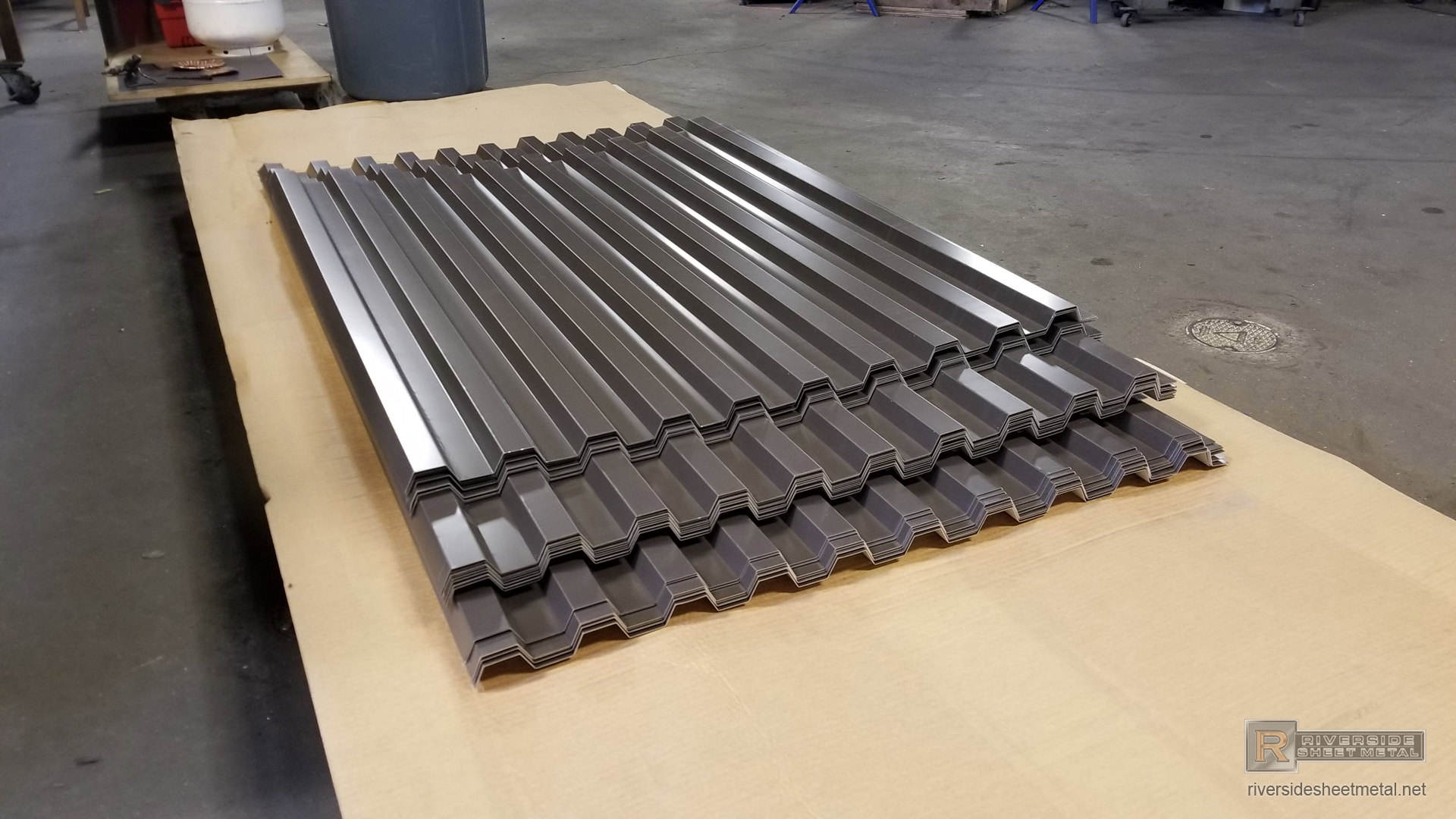

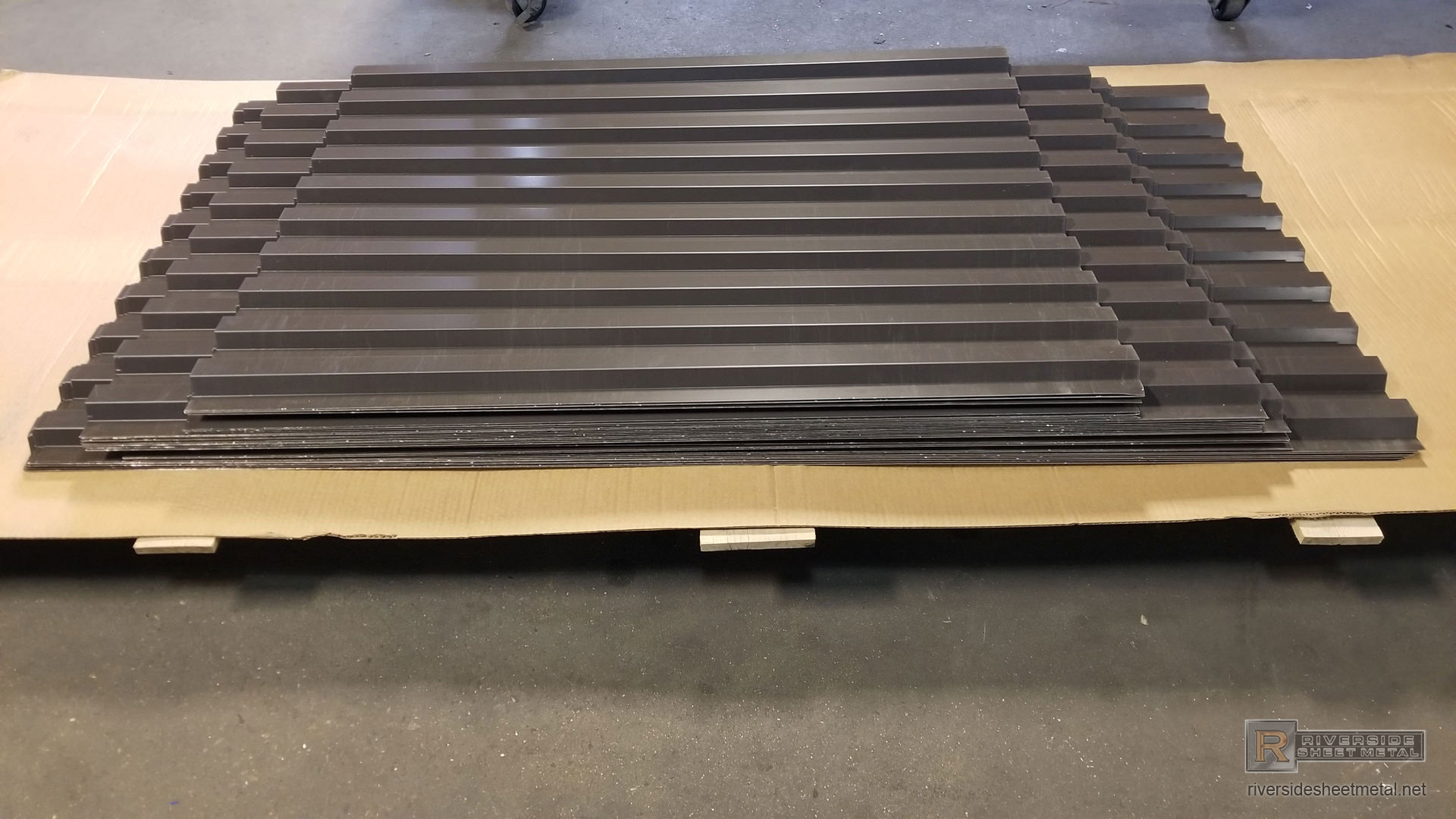

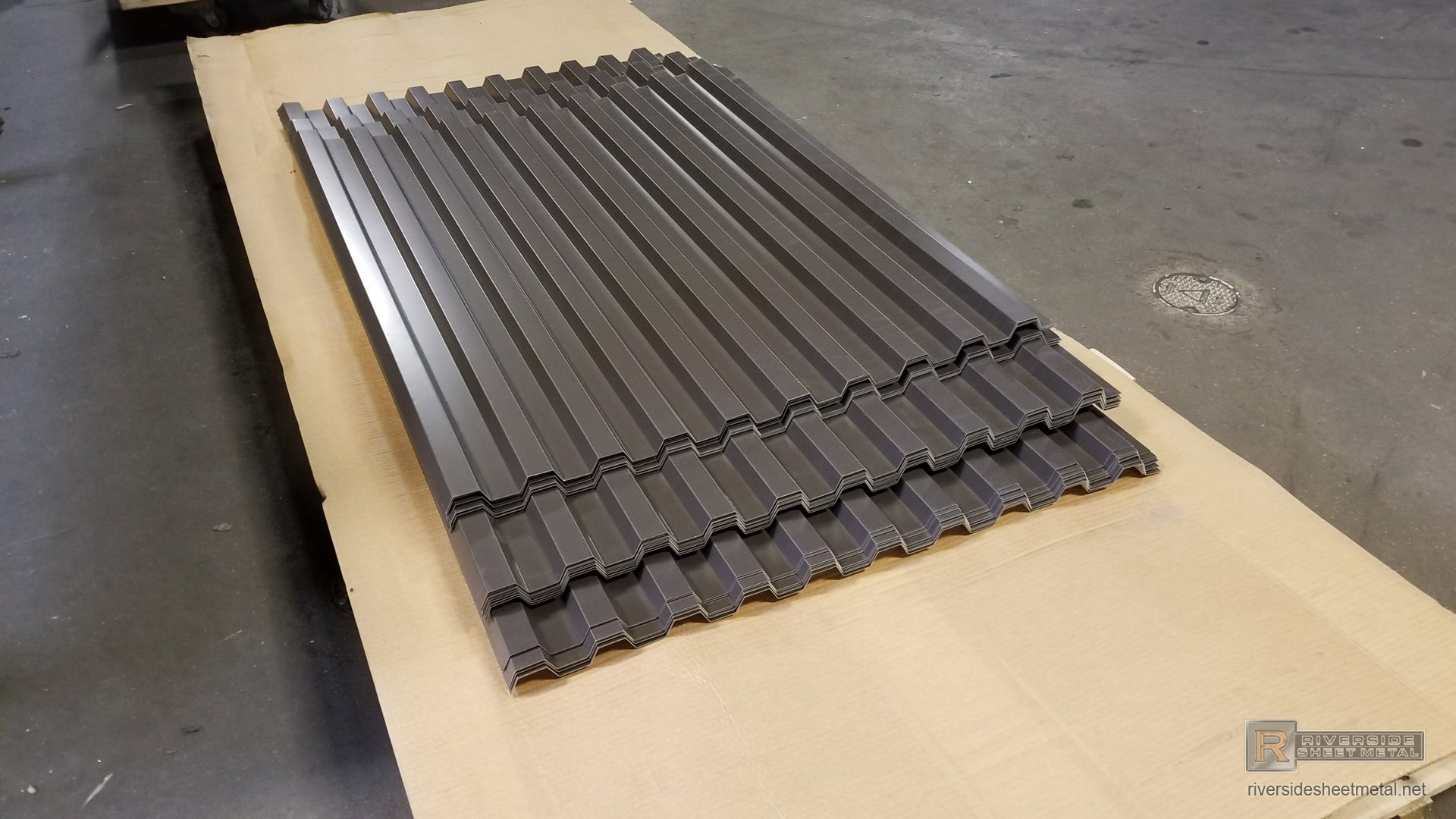

Corrugated roof and wall panels

Riverside offers corrugated roof and wall panels. Some standard profiles are available in 10' to 24' lengths.

Standard profiles come in a variety of different configurations, and because they come out of a panel machine, they can be run to any length, normally 10' to 24'.

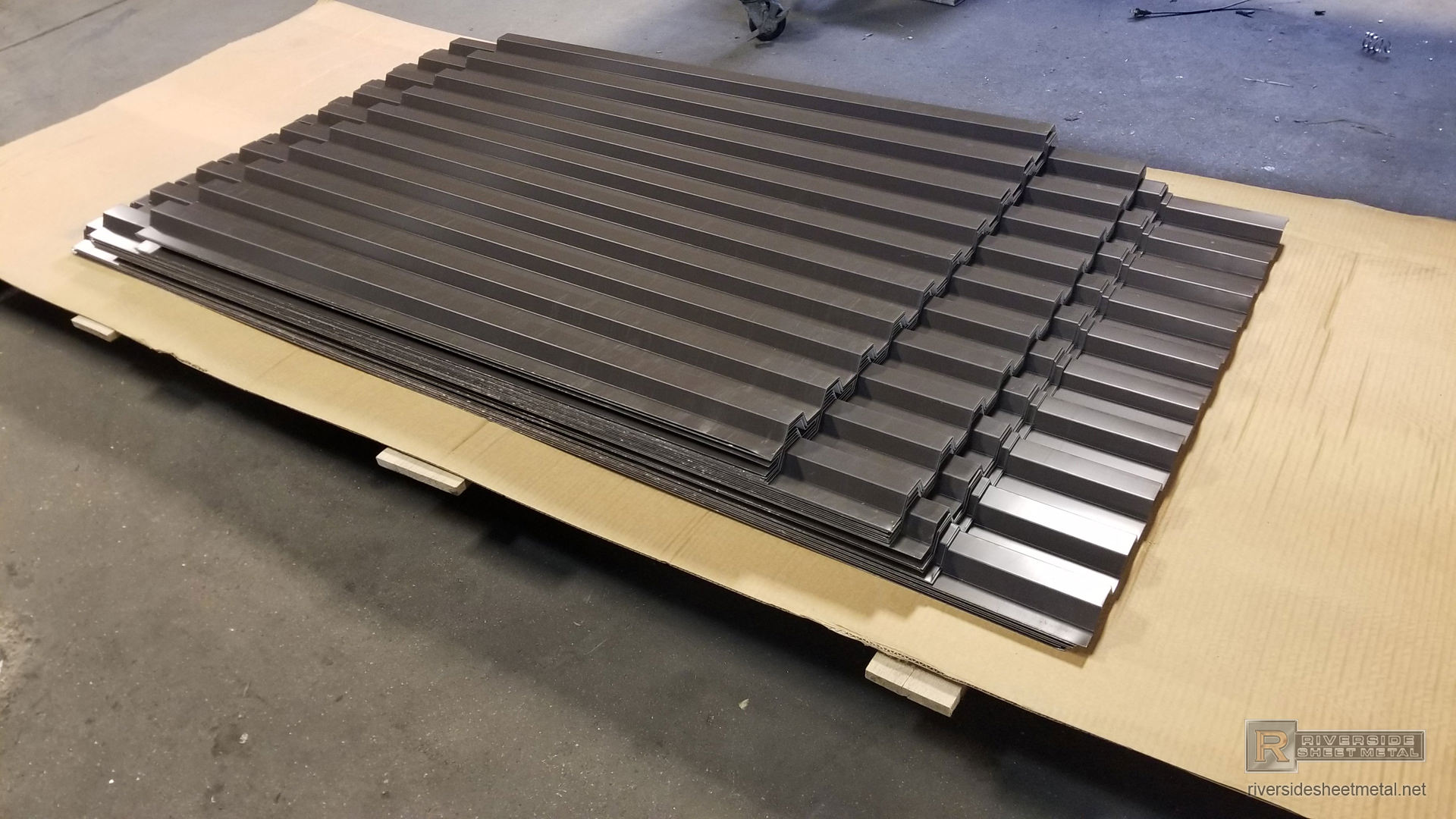

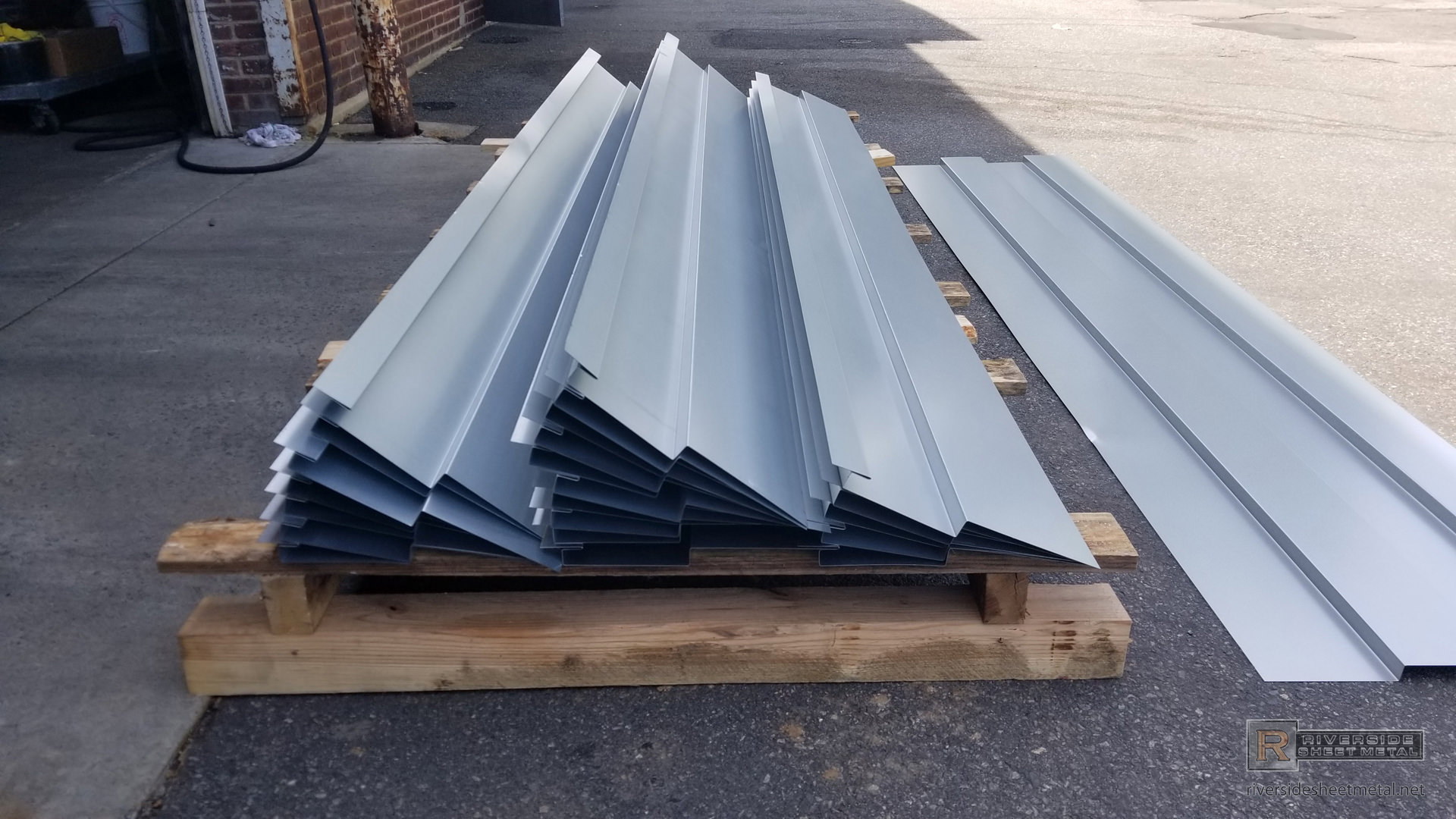

While we make our own standing seam panels, we do not own machines to make corrugated panels, instead, we can source them. We do, however, specialize in matching profiles, manufacturing these by hand on a autobrake. This is useful when a certain custom profile is needed for a job, or a repair job, when a panels of unknown suppliers need to be matched and replaced. Click here for an example.

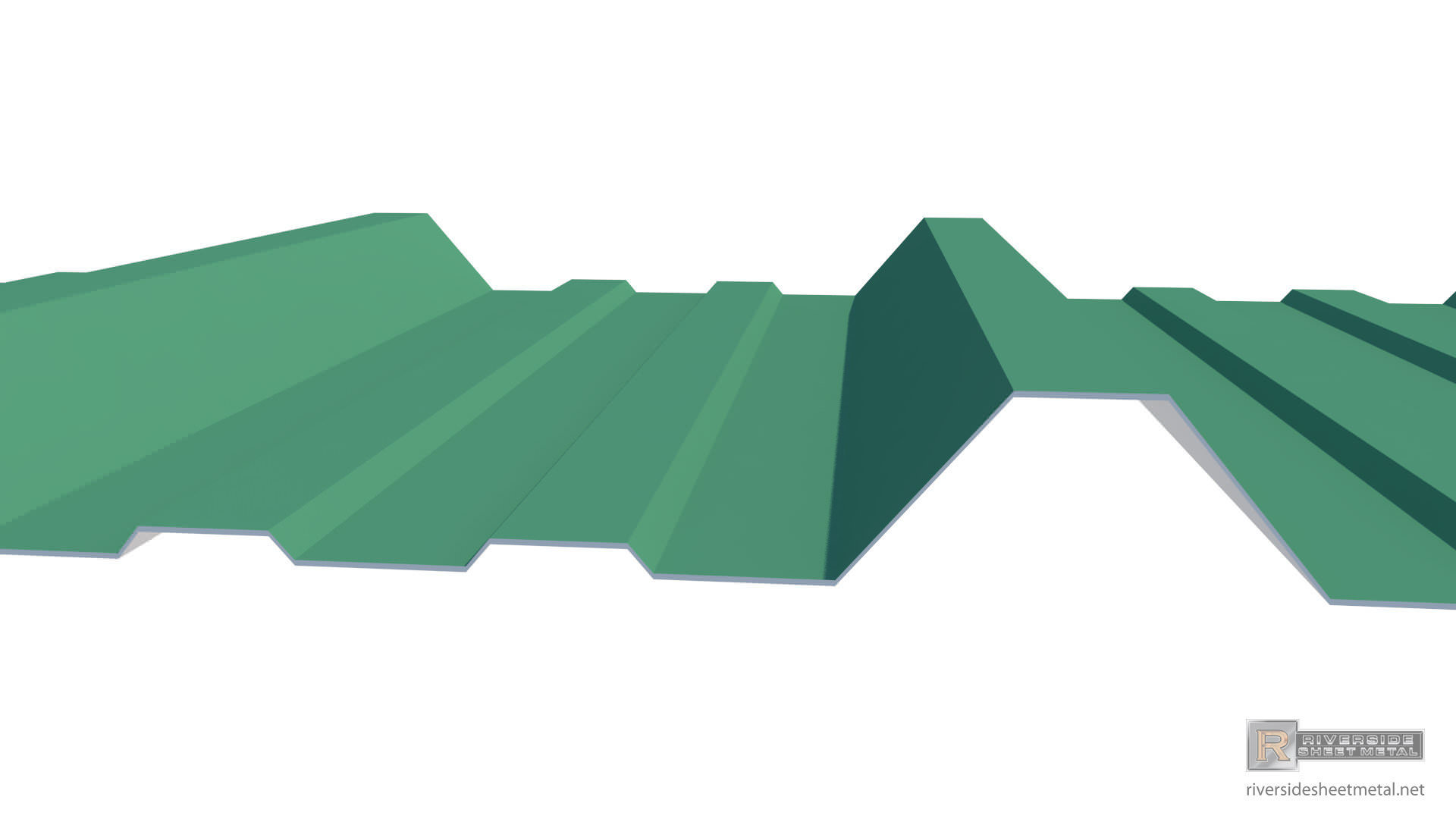

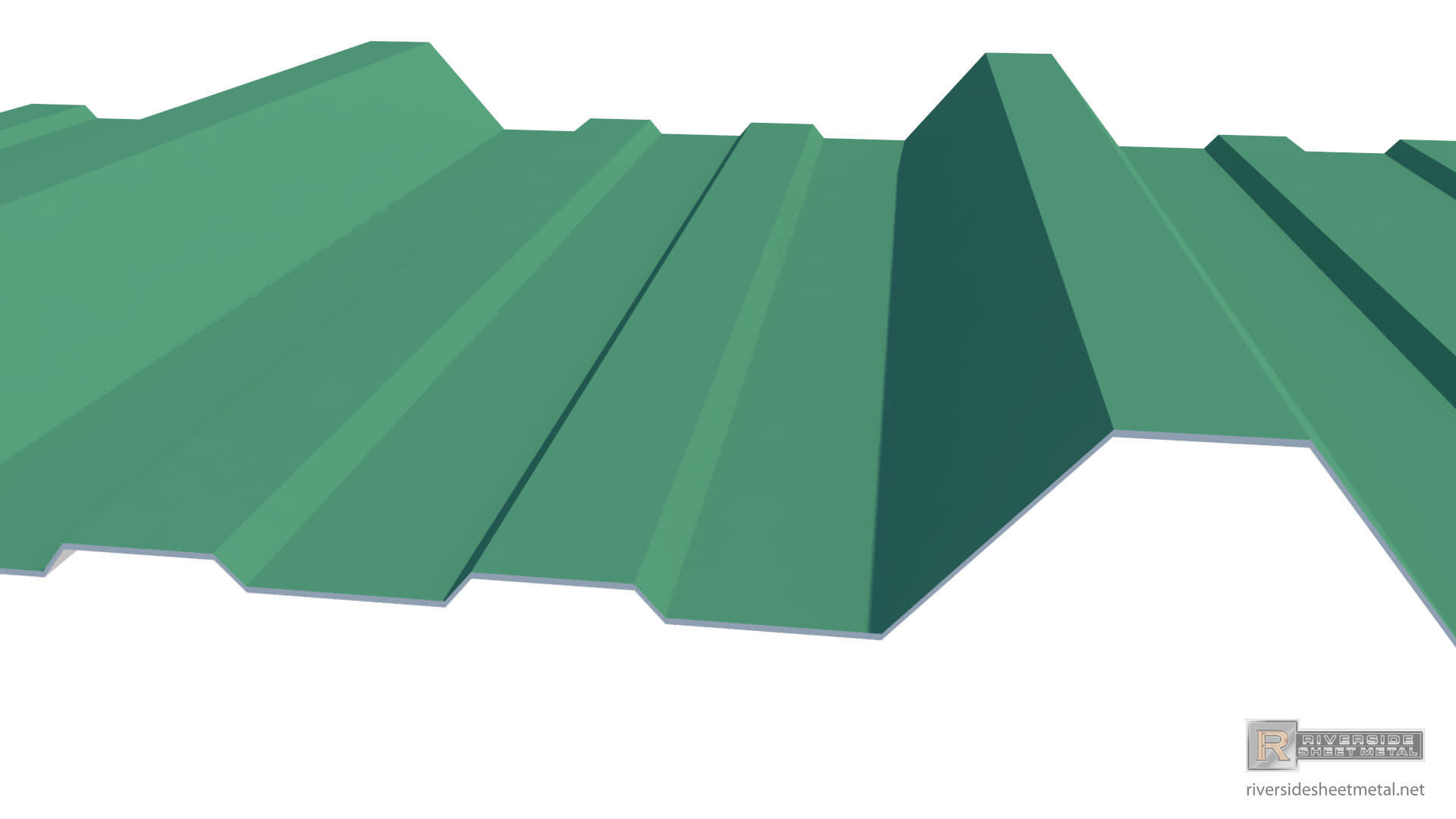

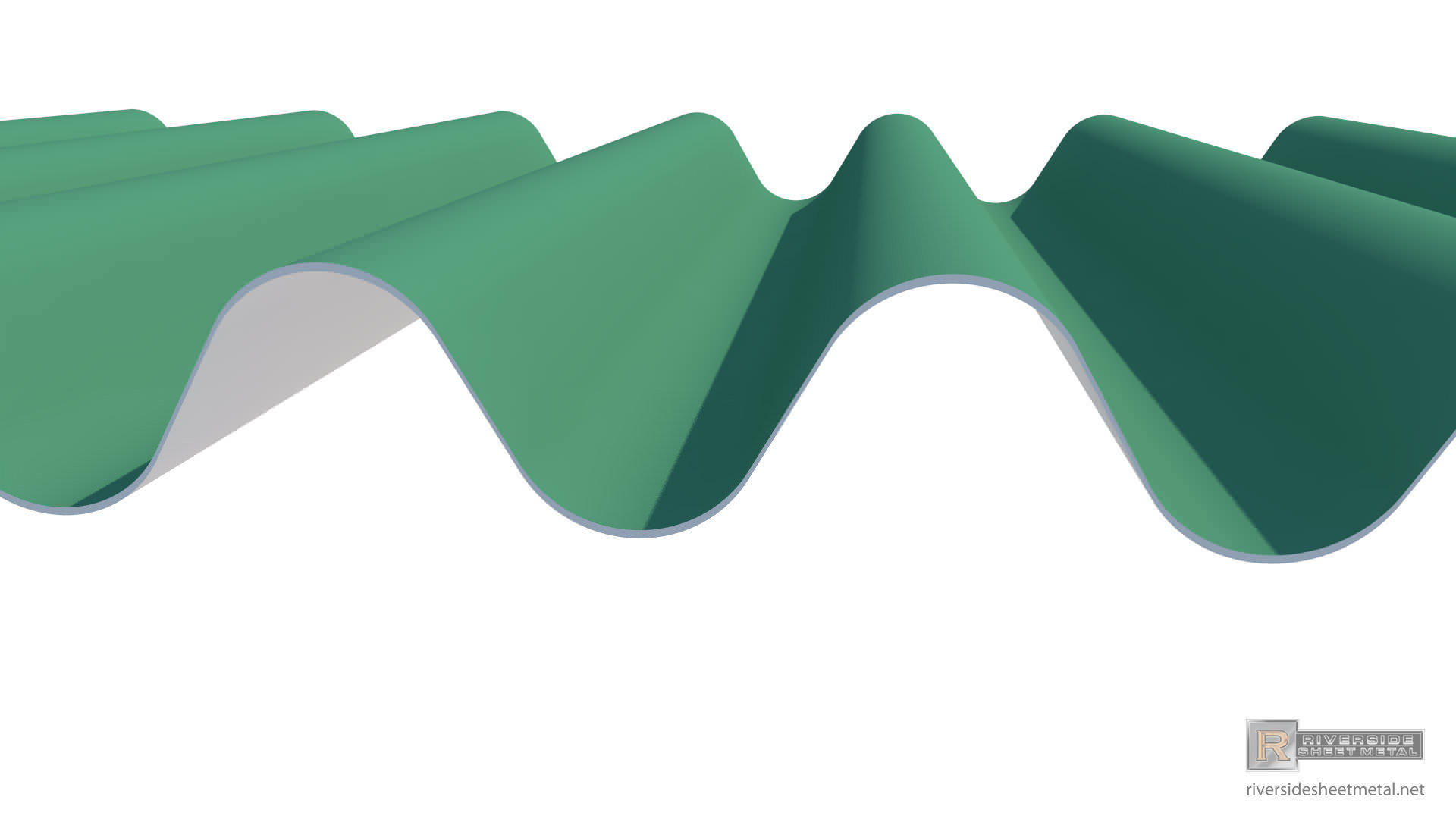

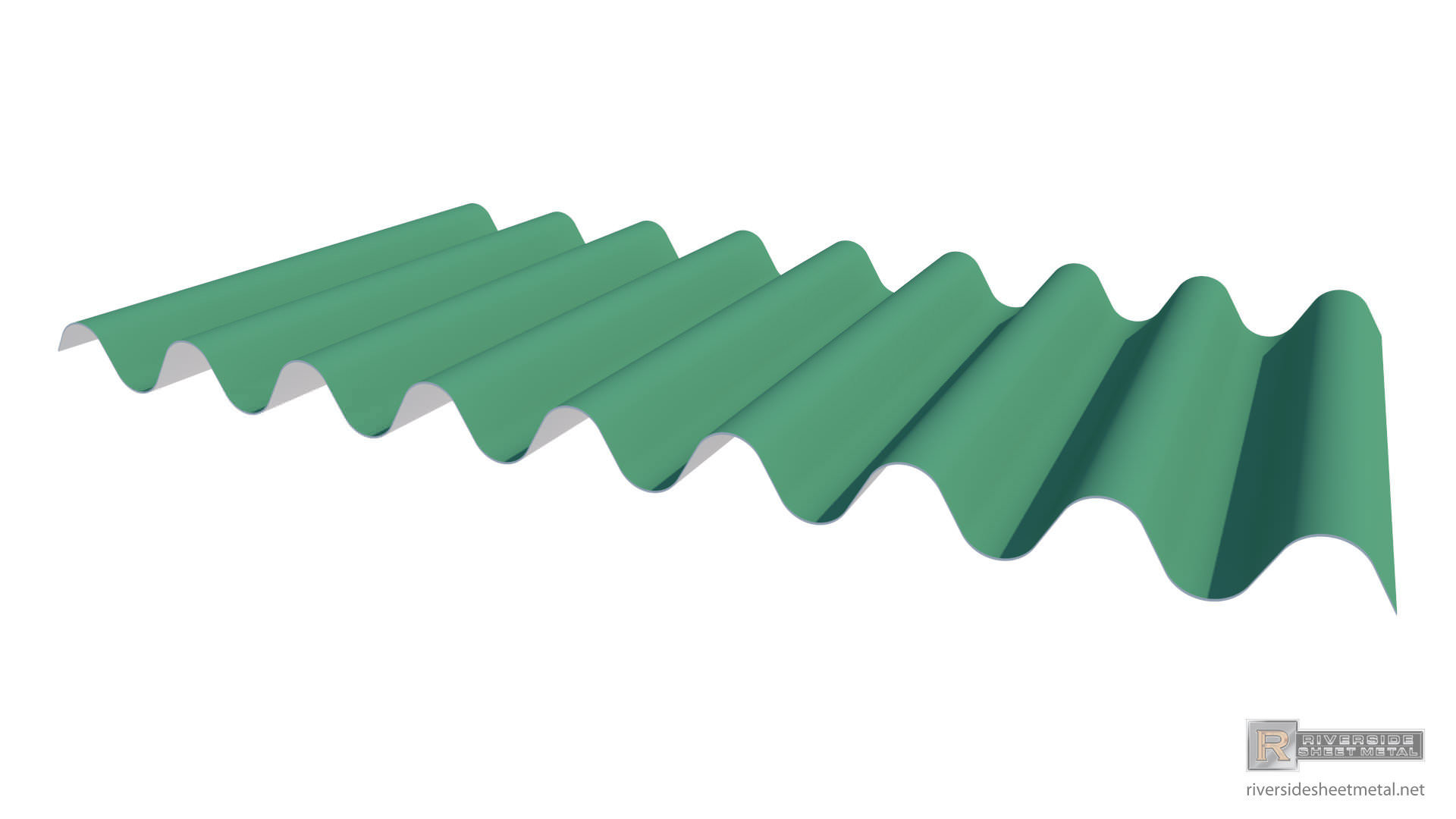

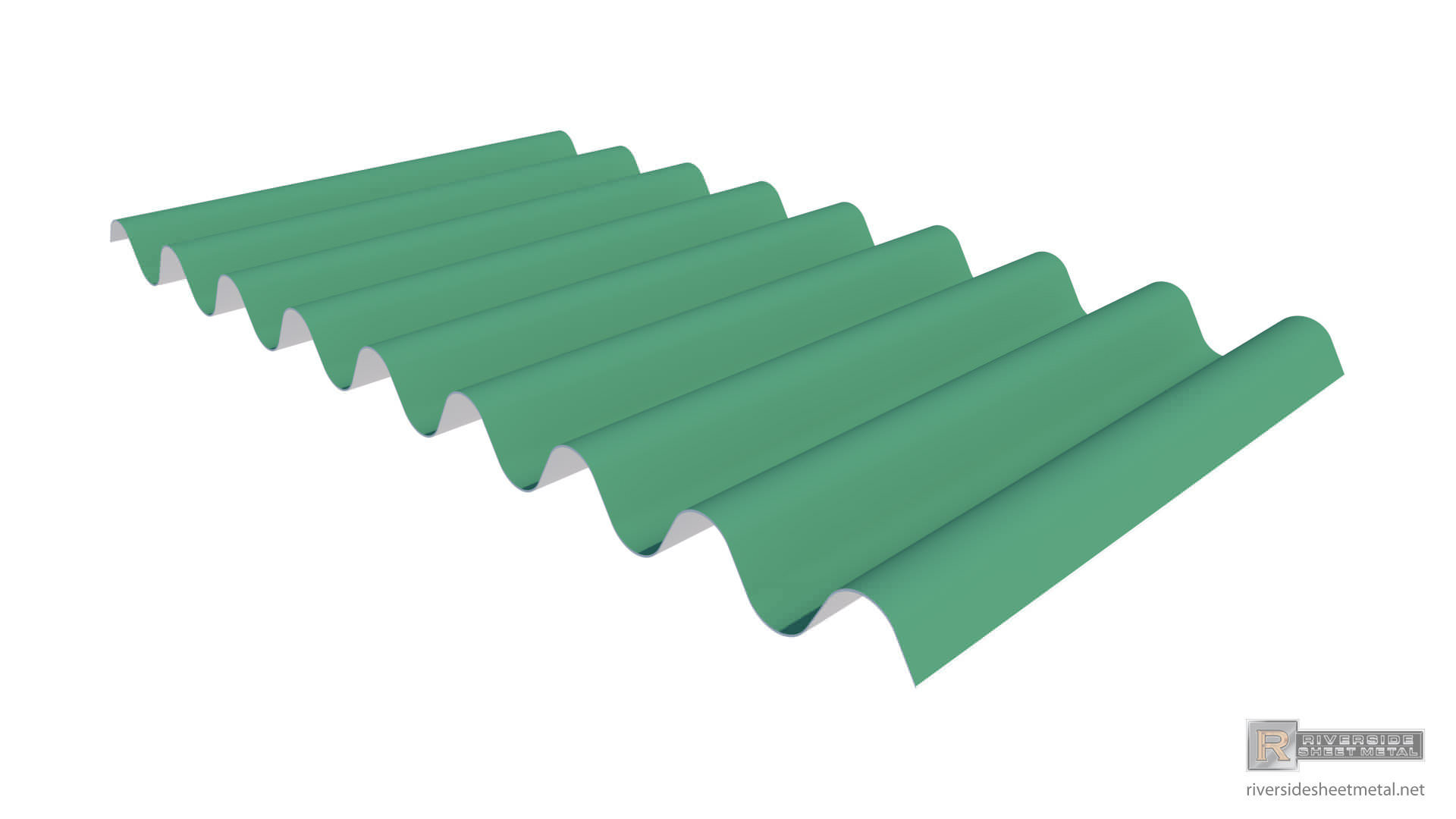

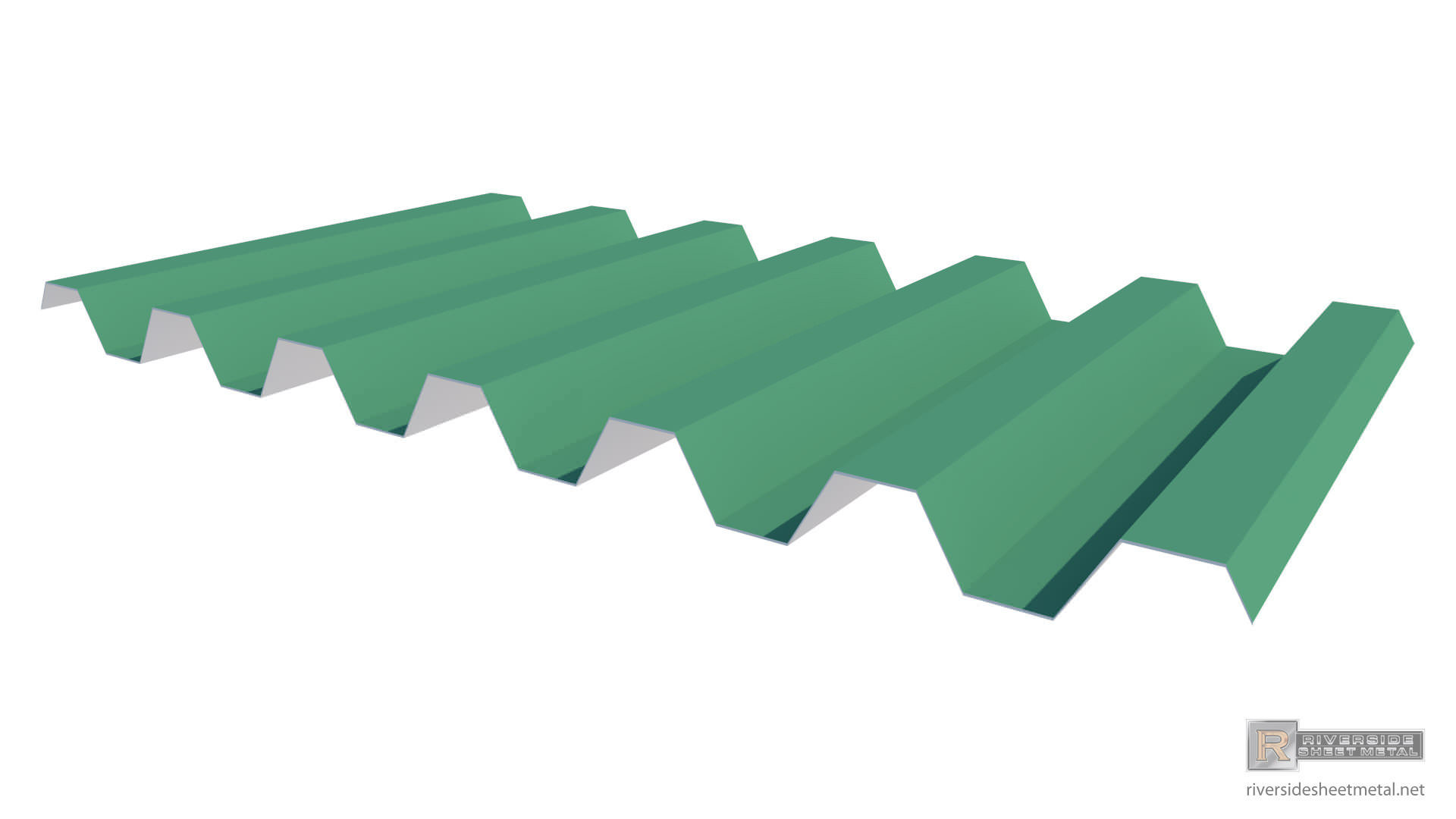

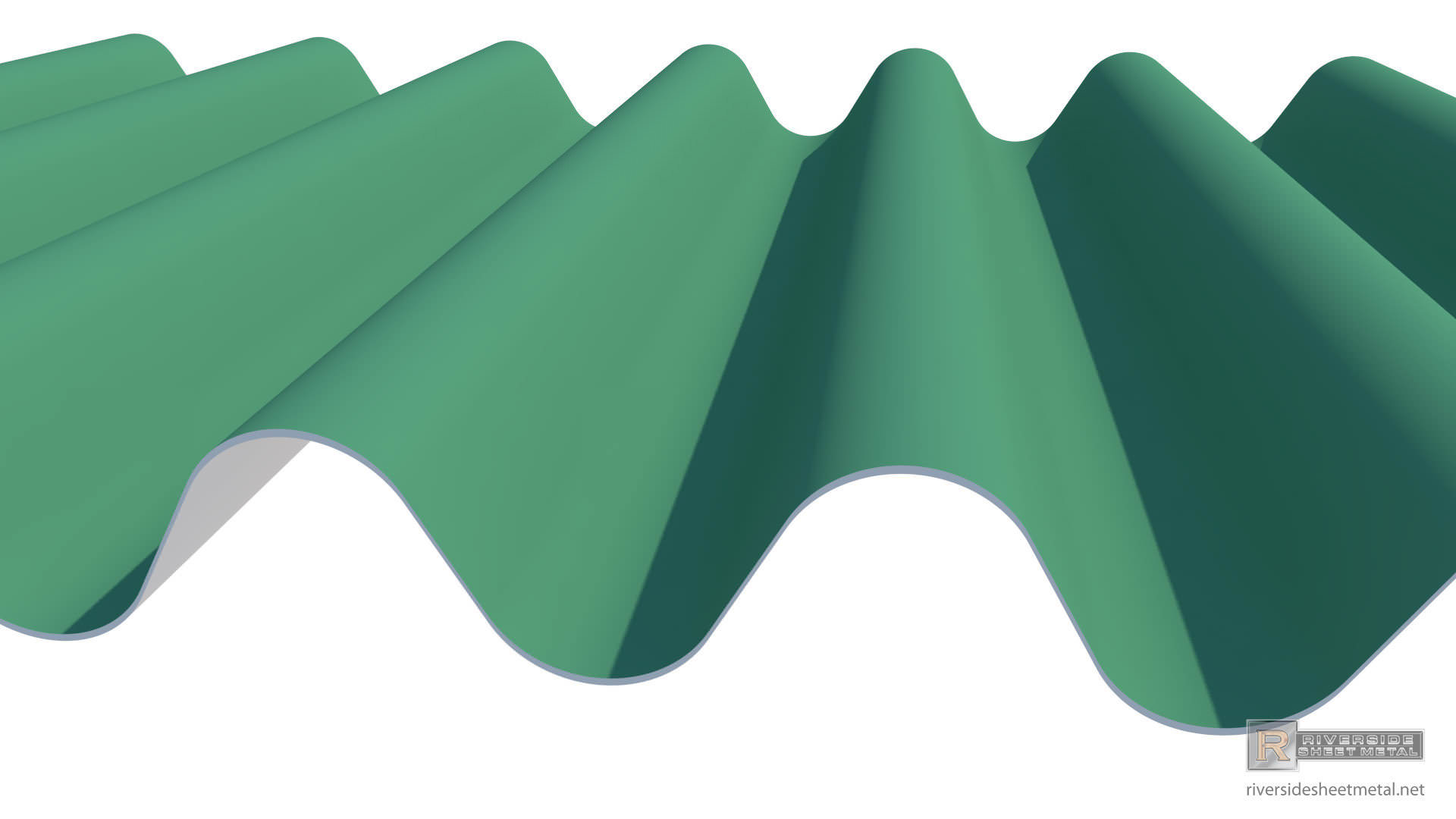

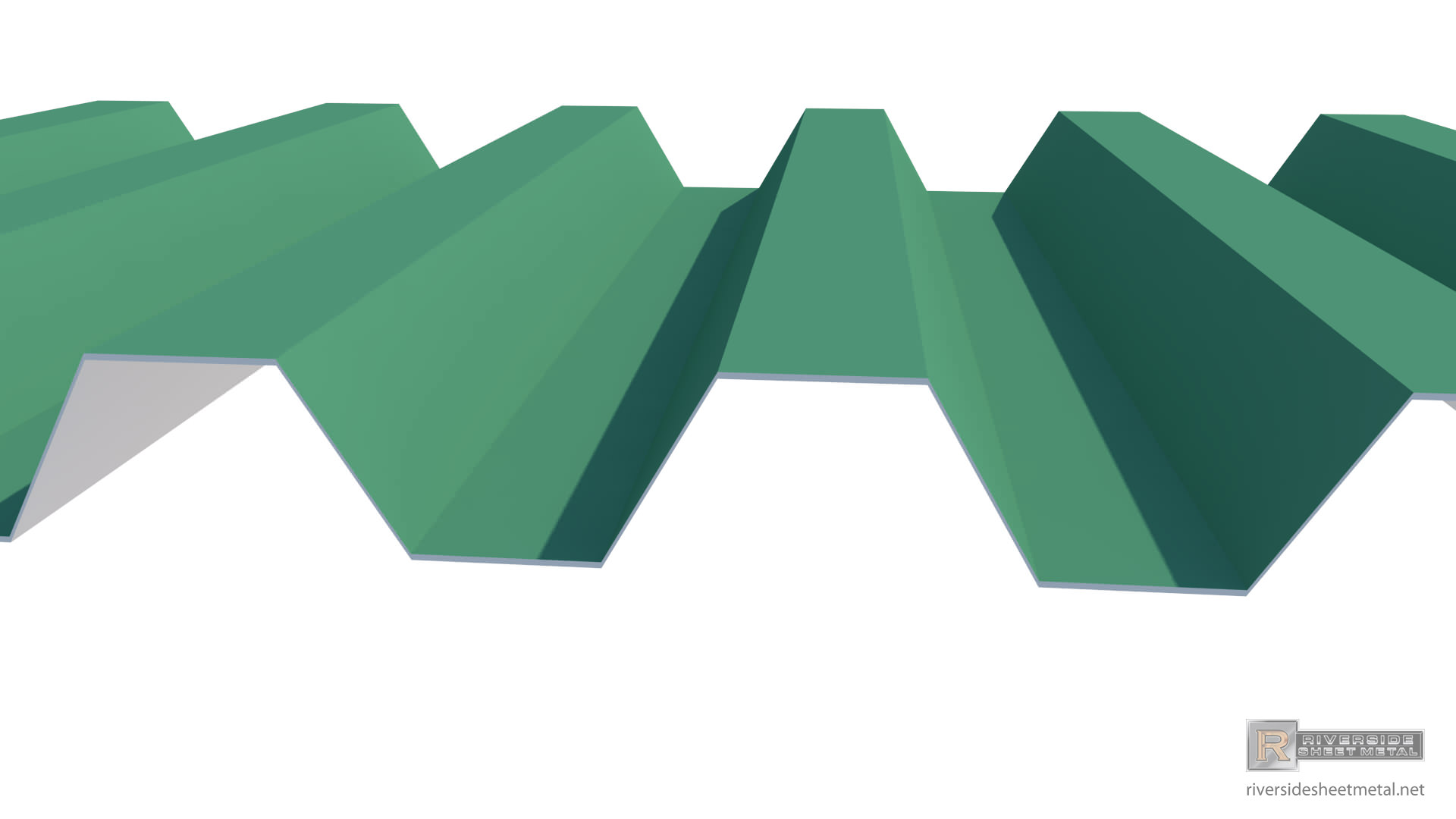

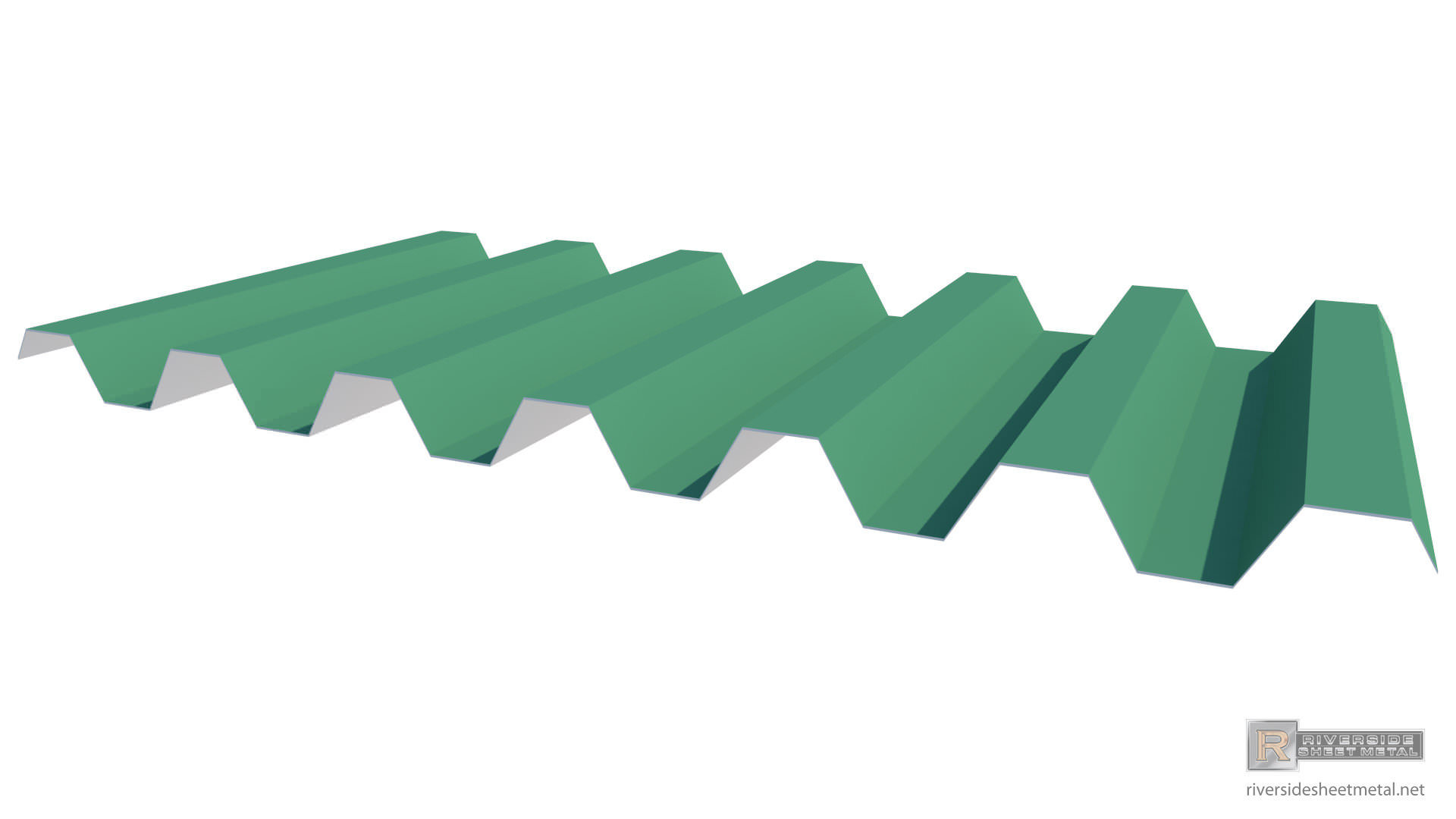

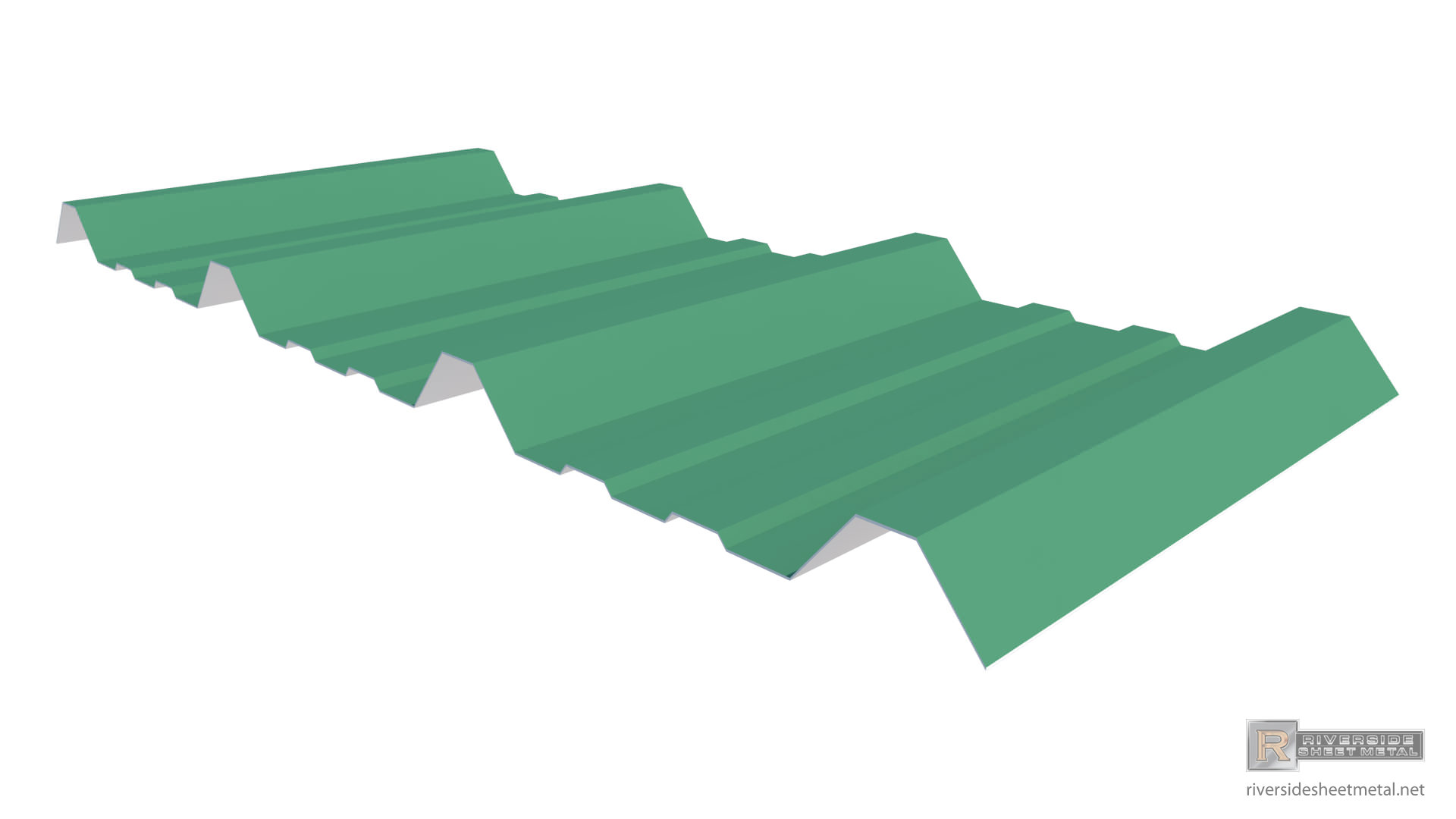

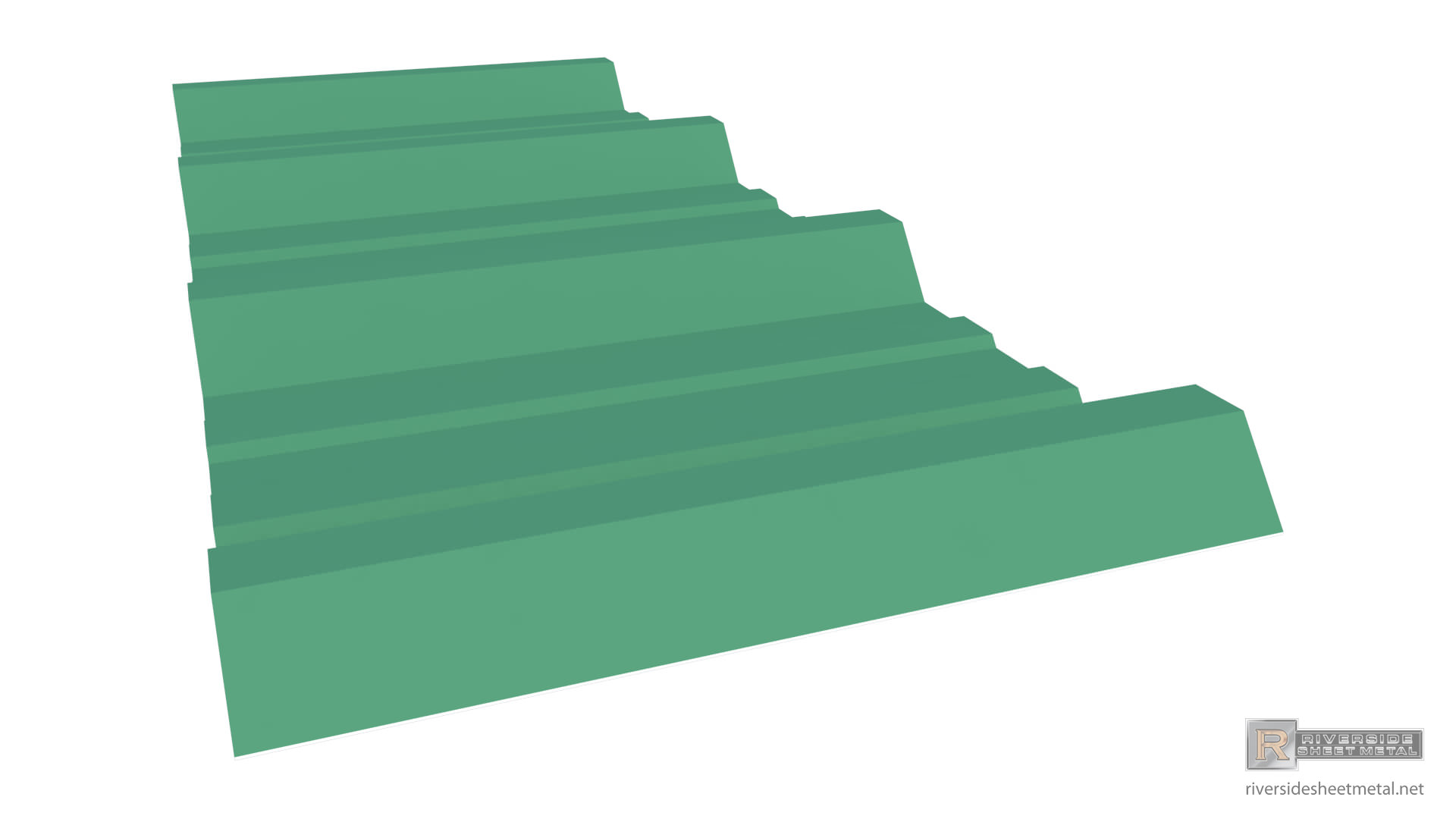

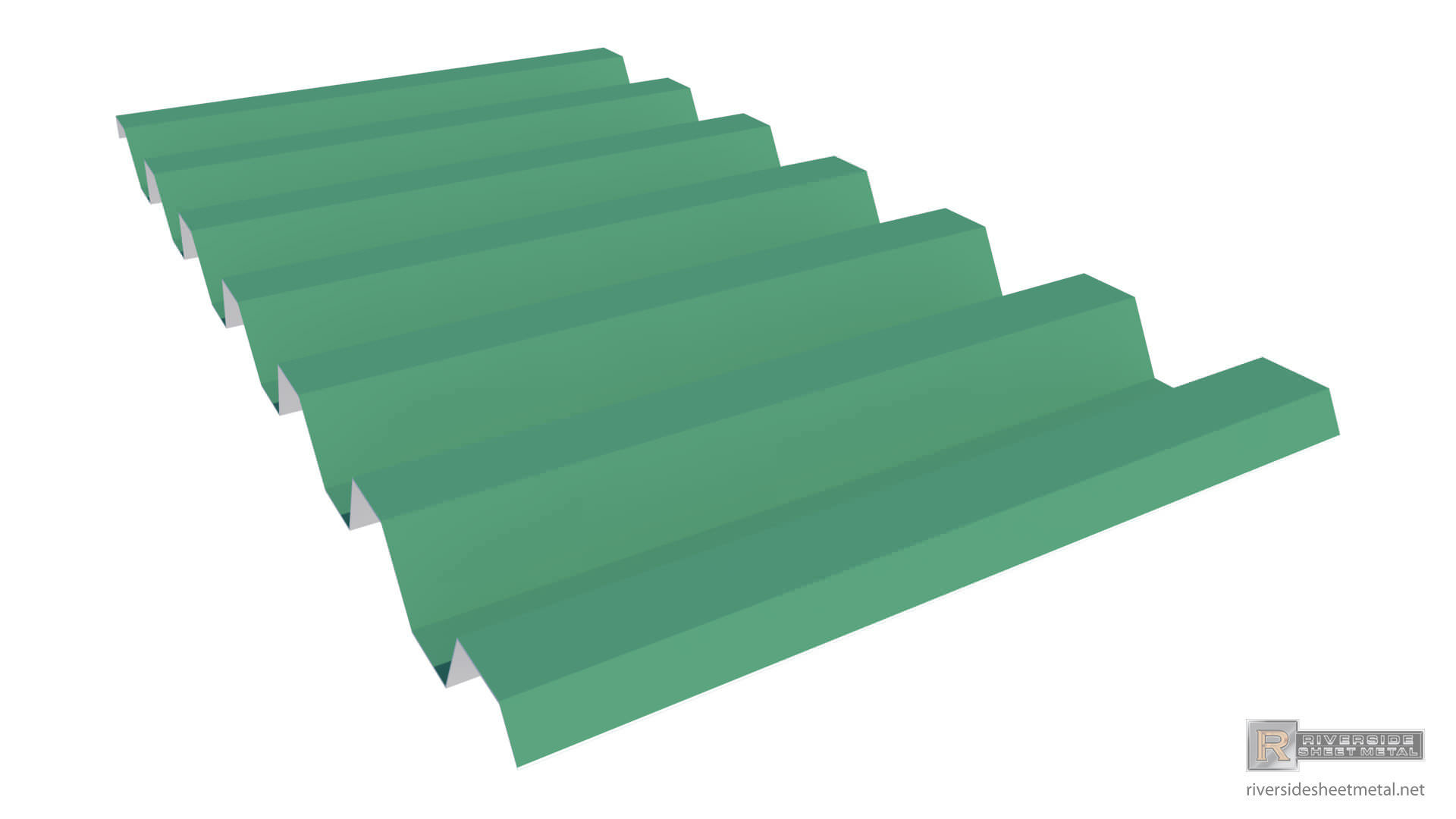

Corrugated roof and wall panel - view 1

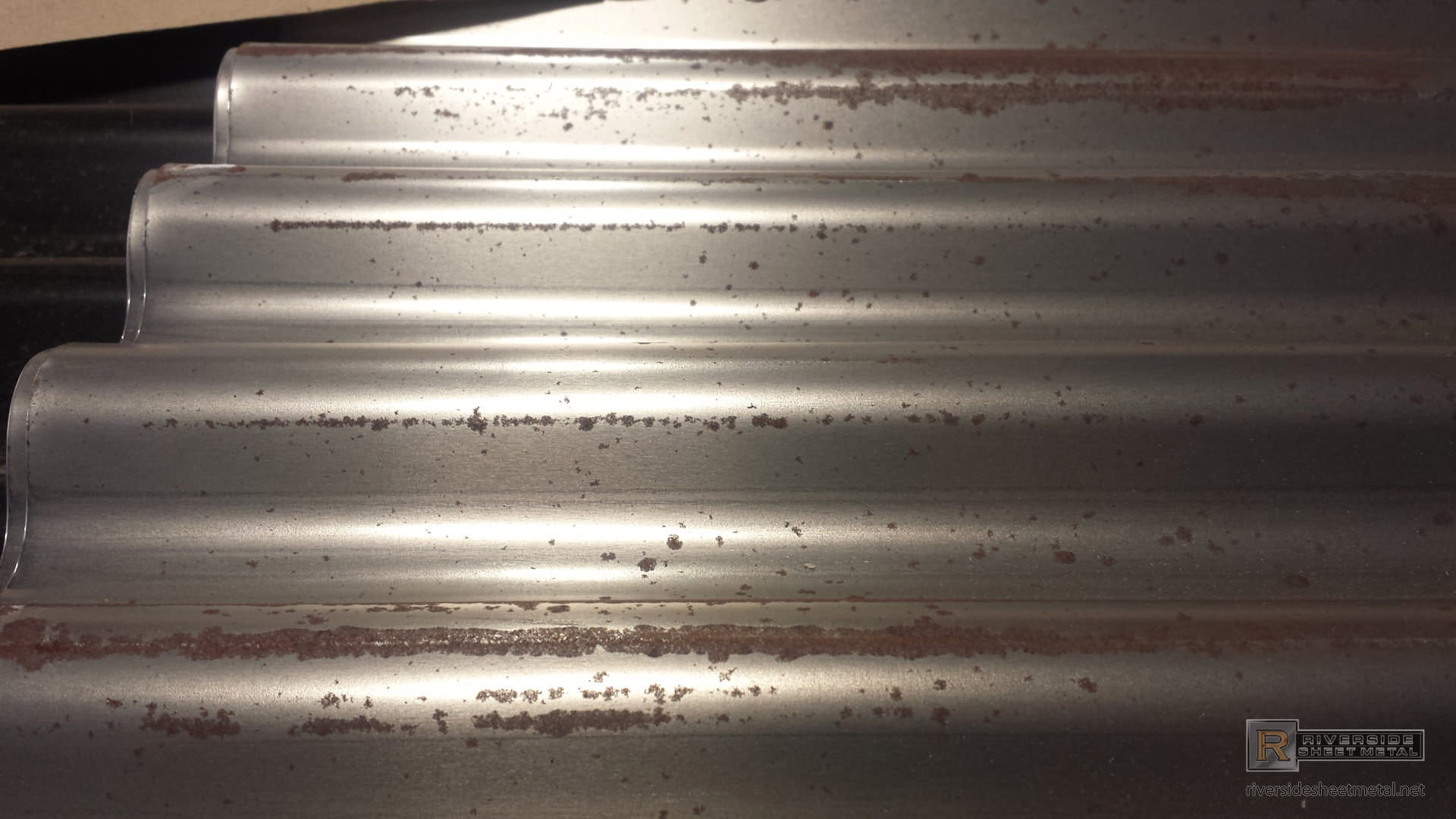

Corrugated panels are commonly fabricated with these materials:

Product Details

Panel Type Lock size Length Ribs / Striations Radius Tapered
Corrugated roof and wall panels N/A Any Yes N/A N/A
Flat lock roof panels 0.5" to 1" Any N/A Available Available
Standing seam roof panels 1", 1.5" & 2" Any Available Available Available
Snap lock roof panels 1.75" Any Available N/A Available

Metal Roof Panel Sizes:

Coil stocks for panels, are usually available in 18", 20" and 24", as seen in the chart below. Although we can custom slit coils to other dimensions, then offering panels at different widths, the previously mentioned are more easily available with a smaller cost. For odd jobs, we can also manually bend panels up to 12' in length on our Autobrakes, matching any odd width profiles.

Finished Roof Panel sizes and Drawings

Panel Type 18" Coil Stock 20" Coil Stock 24" Coil Stock Other Coil Stock Drawing
Standing seam roof panels (1" Height) 15" Finished Panel 17" Finished Panel 21" Finished Panel Special Order PDF
Standing seam roof panels (1.5" Height) 14" Finished Panel 16" Finished Panel 20" Finished Panel Special Order PDF
Standing seam roof panels (2" Height) 12" Finished Panel 14" Finished Panel 18" Finished Panel Special Order PDF
Snap lock roof panels (1.75" Height) 12" Finished Panel 14" Finished Panel 18" Finished Panel Special Order PDF

Metal roofing products are commonly fabricated with these materials:

Click here for a full list of colors and materials

Riverside offers some of the accessories necessary for installation of standing seam, wall and flat lock roof panels such as clips. Although we don't sell tools, we have a list on our website of some of our favorite tools and can point you in the right direction for purchasing or renting tools and for buying other accessories.


Edge and Flashing Metal:

Metal Roof systems don't consist only of panels. Edge and Flashing metal is required to start and finish the job, and Riverside manufacturers all that is necessary for your project. Normally, to start a job, you will need at least drip edge, to hook your panels onto, J channel (or Z channel if you prefer), either to accept a Ridge Cap, or a Head Wall Flashing and in most cases, you will also also need Valley Flashing.
