Standing Seam Panels - Metal Roofing

Available in many different materials. Custom made on site to any length.

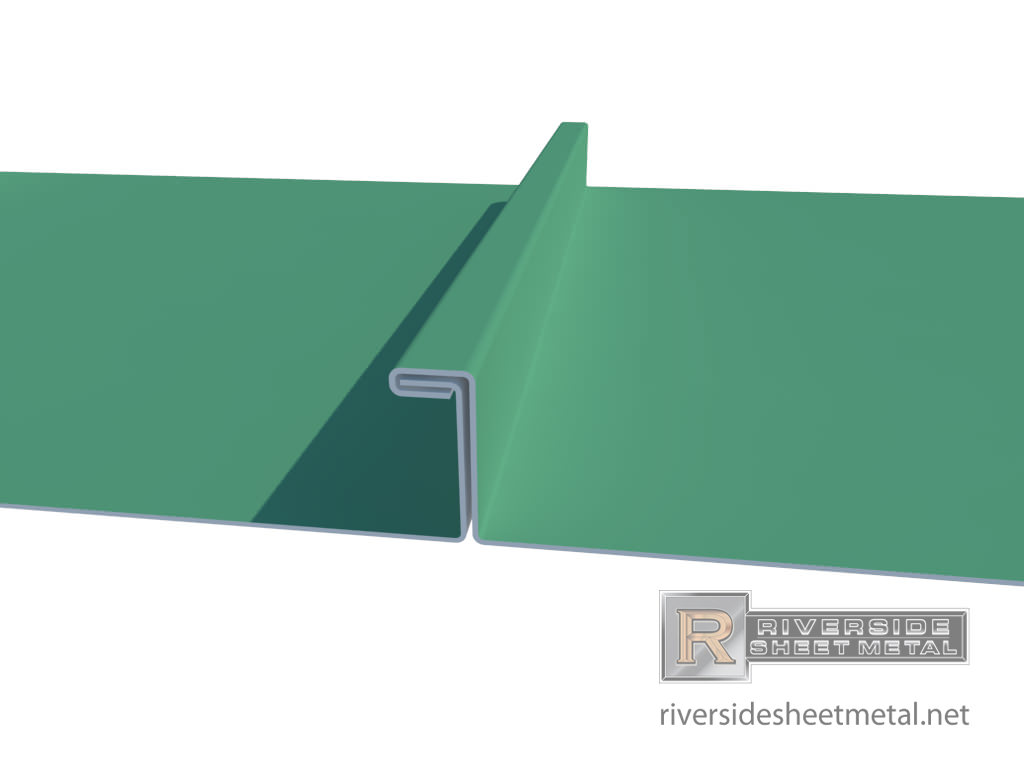

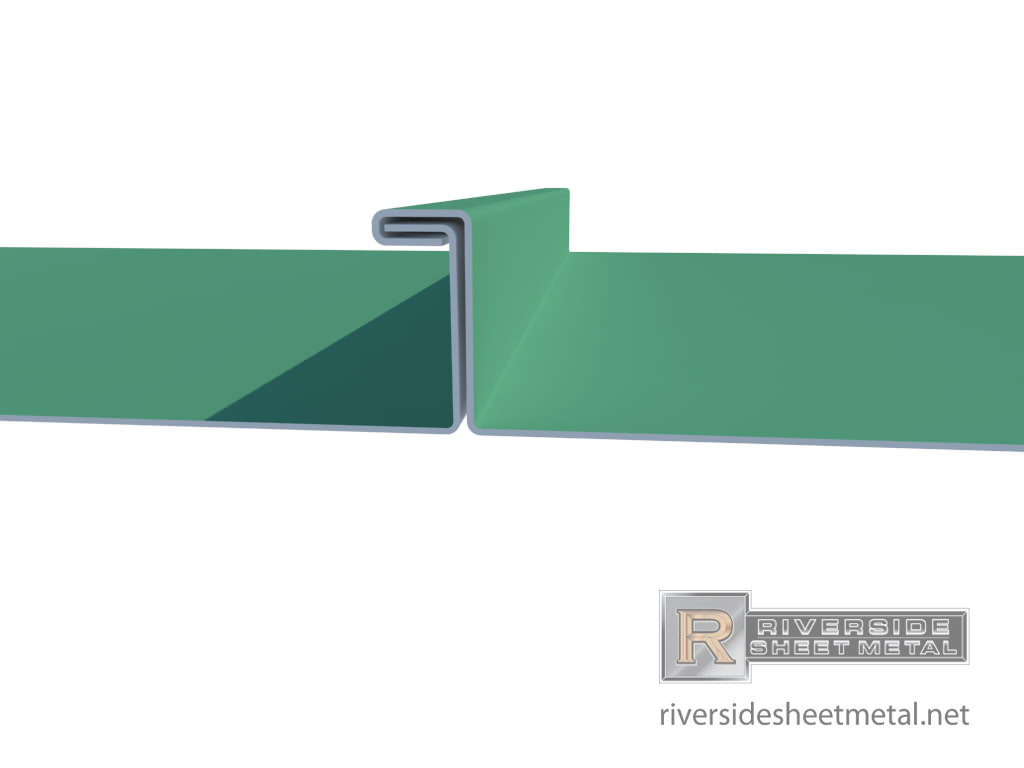

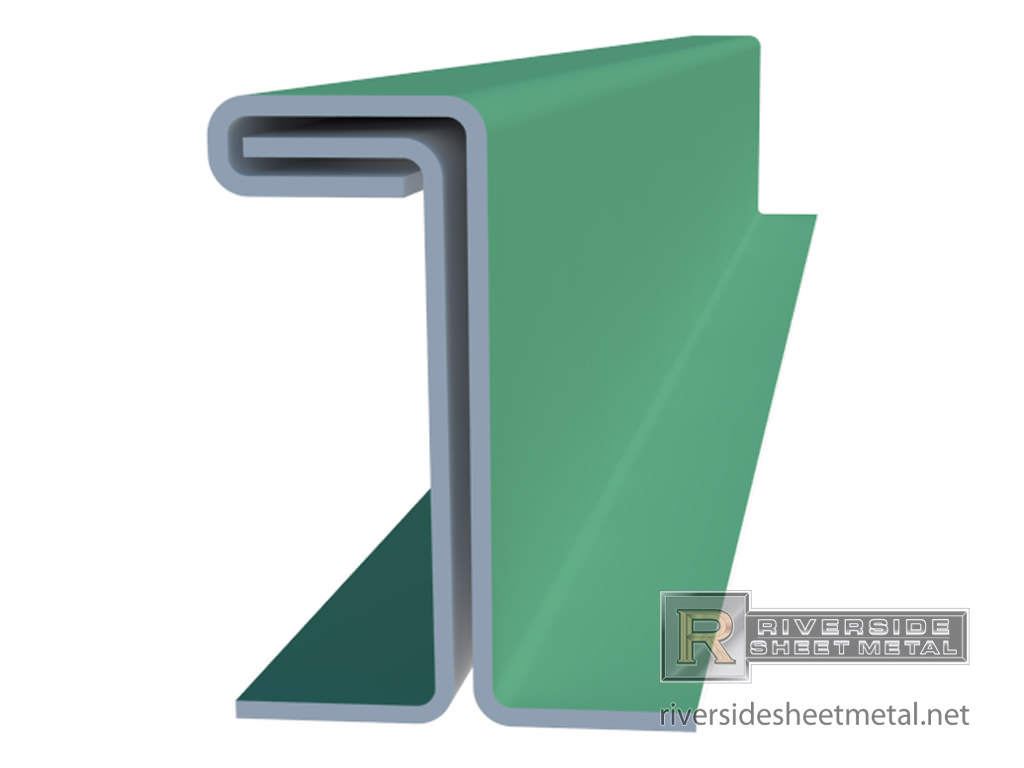

Standing seam single and double lock roof panels

Available in 1", 1.5" and 2". Standing seam roof panels are the classic standard. Long before machines were around to extrude panels, contractors all over the world were installing this definitive look. The 1.5" and 2" relatives of this beautiful panel were developed to create greater shadow lines, to add structural strength, and to provide greater integrity in low sloped situations.

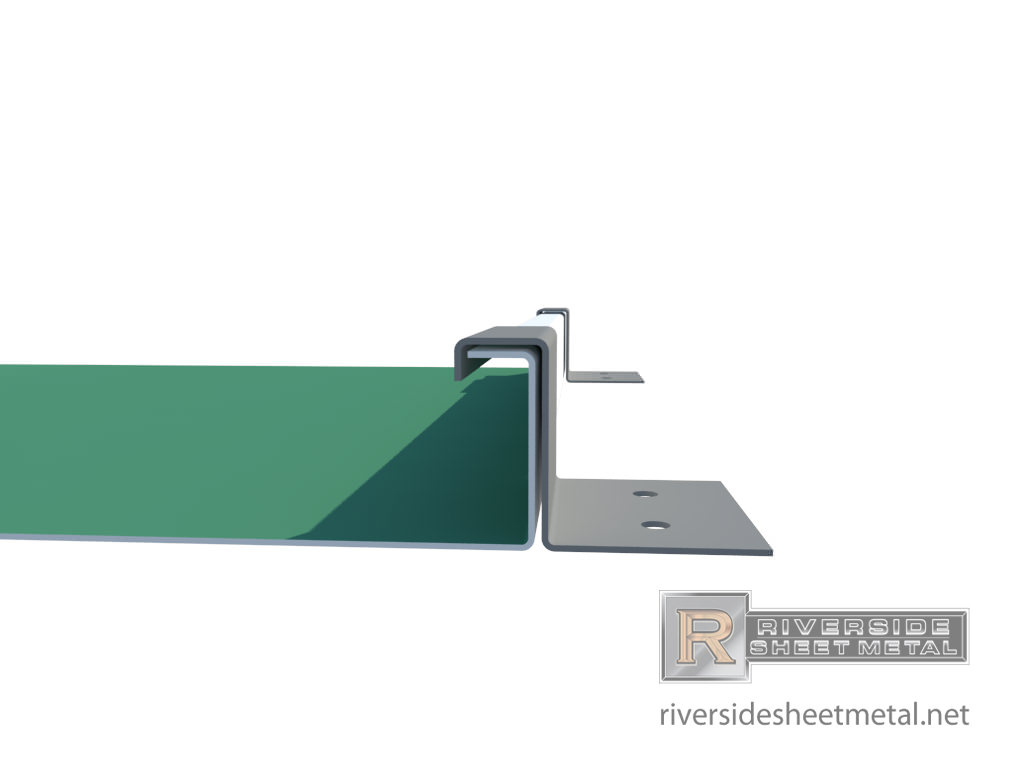

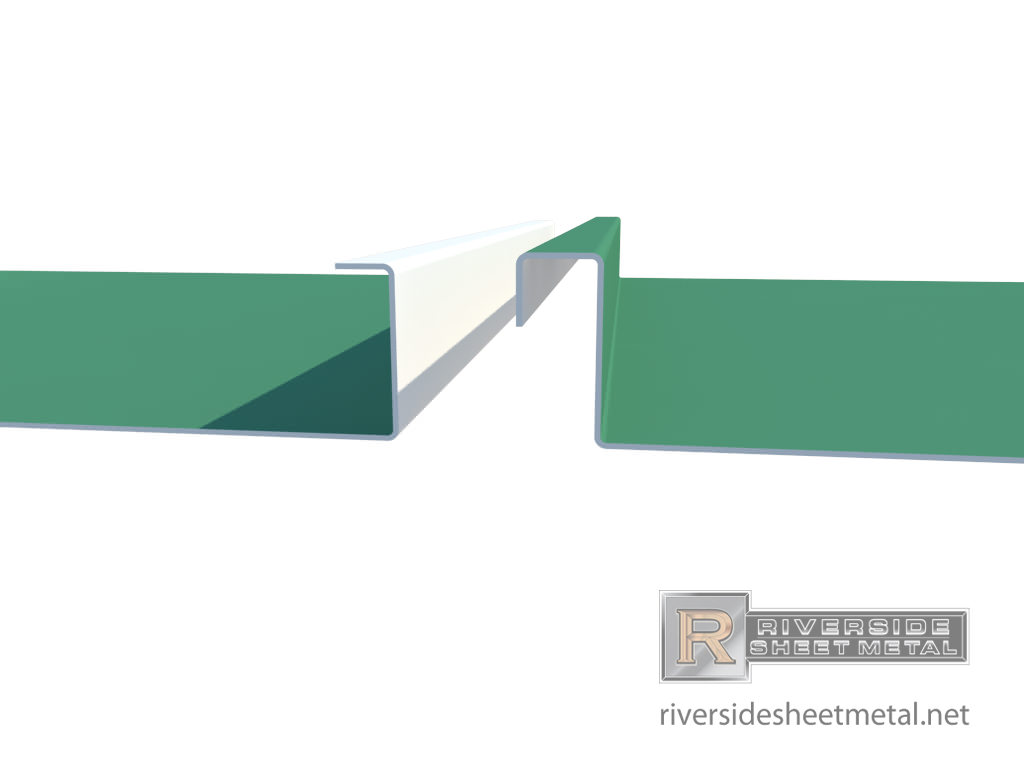

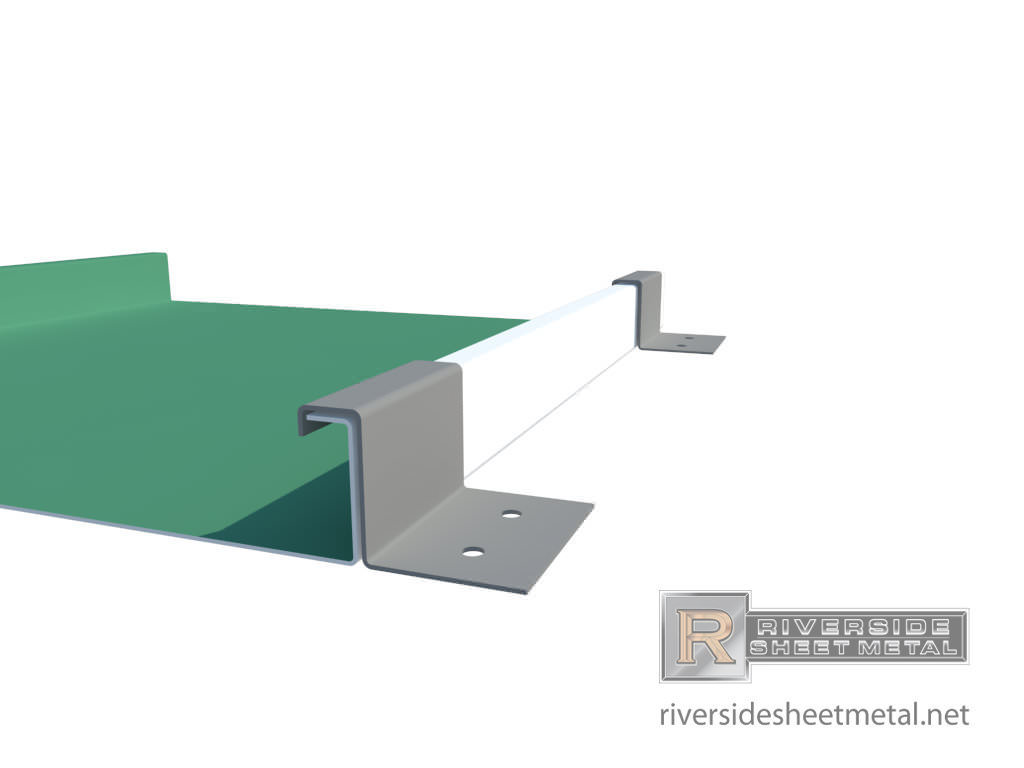

Installation is done via using clips to secure the panels down to a roof and folding the seams once or twice, creating the single lock and double lock panel respectively.

Click for more information: single lock panels, double lock panels and snap lock panels.

Riverside has panel machines that will run panels on site to our customers in different sizes, materials and lengths. We also offer radius and tapered panels that can be manufactured at our location.

Riverside also offers installation services in Massachusetts and parts of of New England

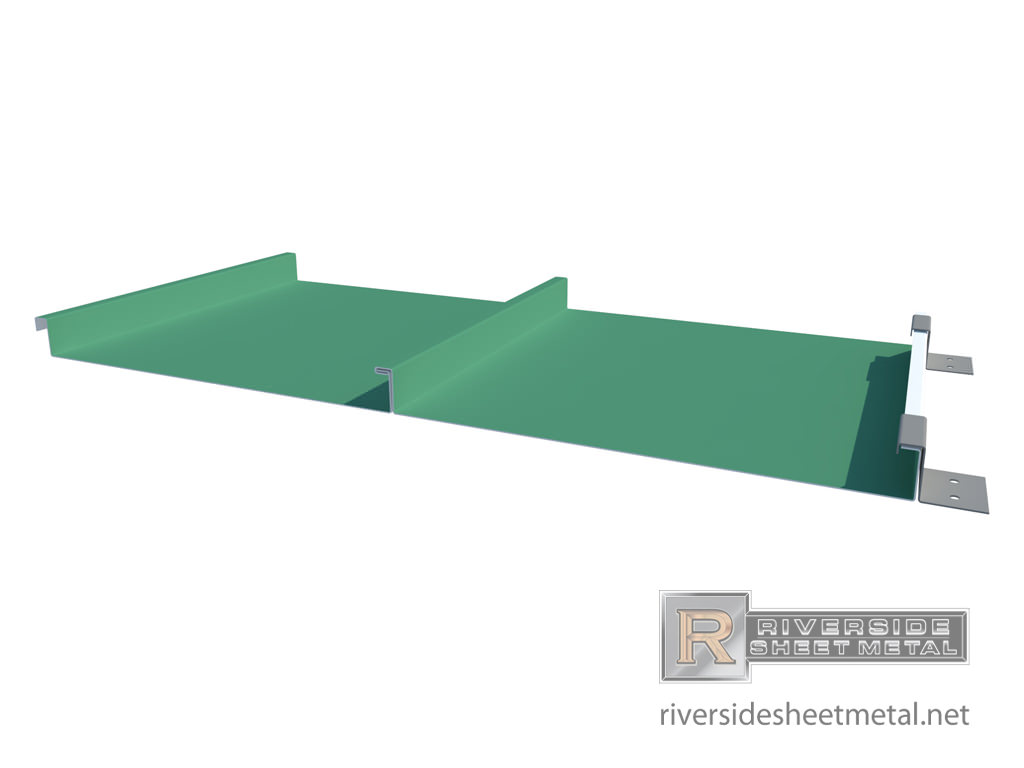

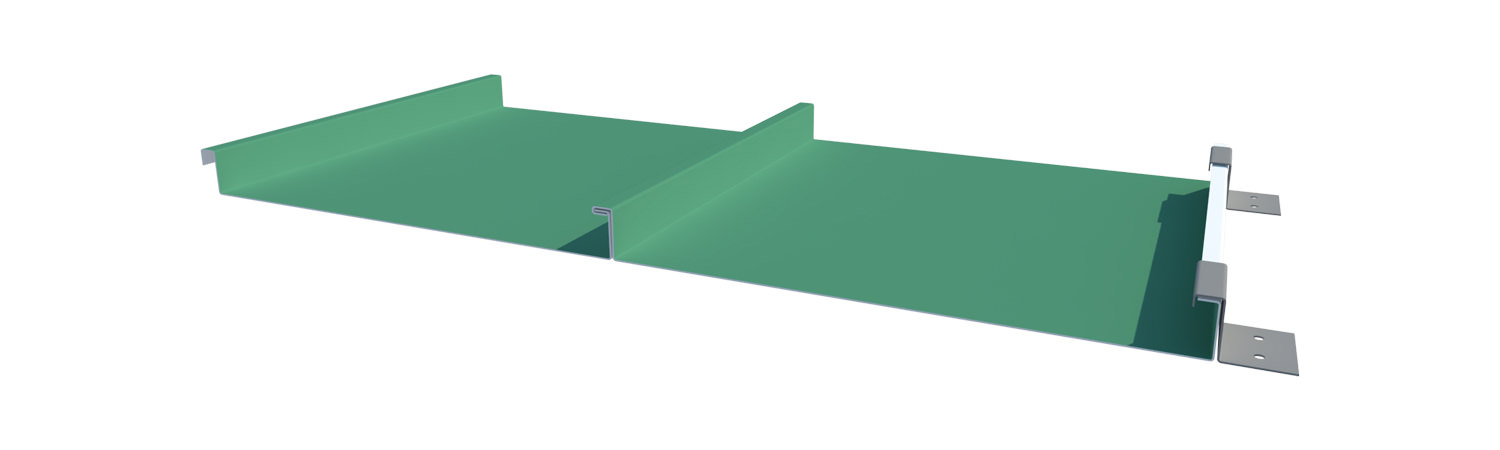

Standing seam roof panel - Single lock installation - view 1

Product Details

Panel Type Lock size Length Ribs / Striations Radius Tapered
Corrugated roof and wall panels N/A Any Yes N/A N/A
Flat lock roof panels 0.5" to 1" Any N/A Available Available
Standing seam roof panels 1", 1.5" & 2" Any Available Available Available
Snap lock roof panels 1.75" Any Available N/A Available

Metal Roof Panel Sizes:

Coil stocks for panels, are usually available in 18", 20" and 24", as seen in the chart below. Although we can custom slit coils to other dimensions, then offering panels at different widths, the previously mentioned are more easily available with a smaller cost. For odd jobs, we can also manually bend panels up to 12' in length on our Autobrakes, matching any odd width profiles.

Finished Roof Panel sizes and Drawings

Panel Type 18" Coil Stock 20" Coil Stock 24" Coil Stock Other Coil Stock Drawing
Standing seam roof panels (1" Height) 15" Finished Panel 17" Finished Panel 21" Finished Panel Special Order PDF
Standing seam roof panels (1.5" Height) 14" Finished Panel 16" Finished Panel 20" Finished Panel Special Order PDF
Standing seam roof panels (2" Height) 12" Finished Panel 14" Finished Panel 18" Finished Panel Special Order PDF
Snap lock roof panels (1.75" Height) 12" Finished Panel 14" Finished Panel 18" Finished Panel Special Order PDF

Metal roofing products are commonly fabricated with these materials:

Click here for a full list of colors and materials

Riverside offers some of the accessories necessary for installation of standing seam, wall and flat lock roof panels such as clips. Although we don't sell tools, we have a list on our website of some of our favorite tools and can point you in the right direction for purchasing or renting tools and for buying other accessories.


Edge and Flashing Metal:

Metal Roof systems don't consist only of panels. Edge and Flashing metal is required to start and finish the job, and Riverside manufacturers all that is necessary for your project. Normally, to start a job, you will need at least drip edge, to hook your panels onto, J channel (or Z channel if you prefer), either to accept a Ridge Cap, or a Head Wall Flashing and in most cases, you will also also need Valley Flashing.
