Flat Lock Panels - Metal Roofing and Wall

Available in many different materials. Custom made to any width or length.

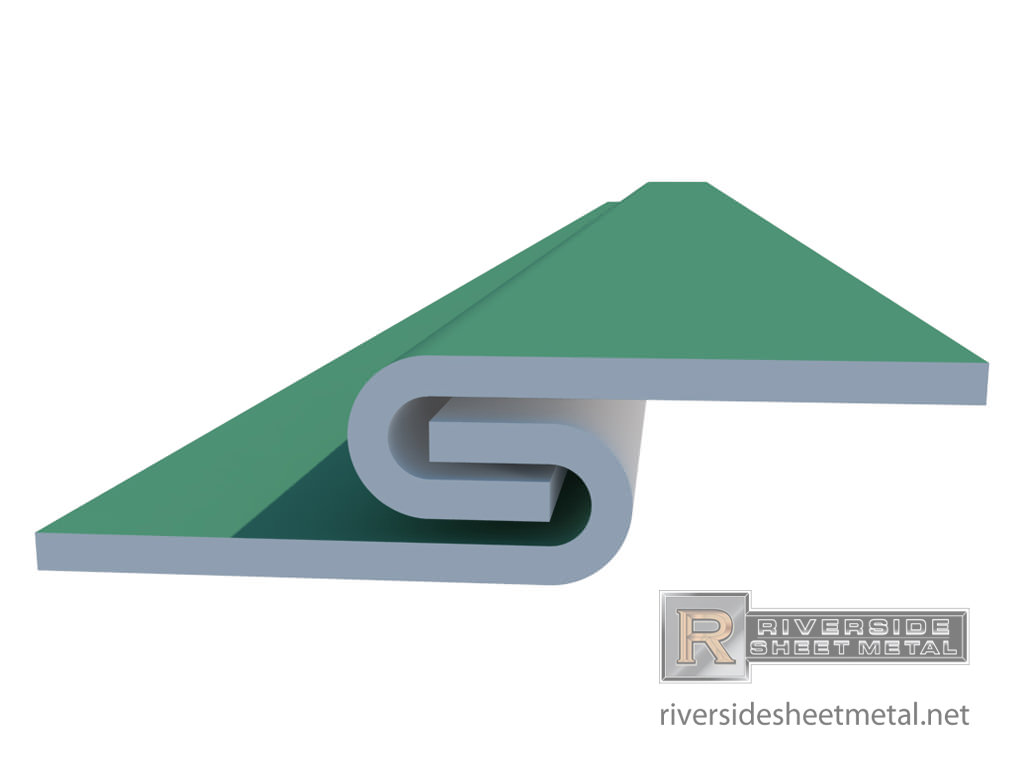

Flat lock roof panels

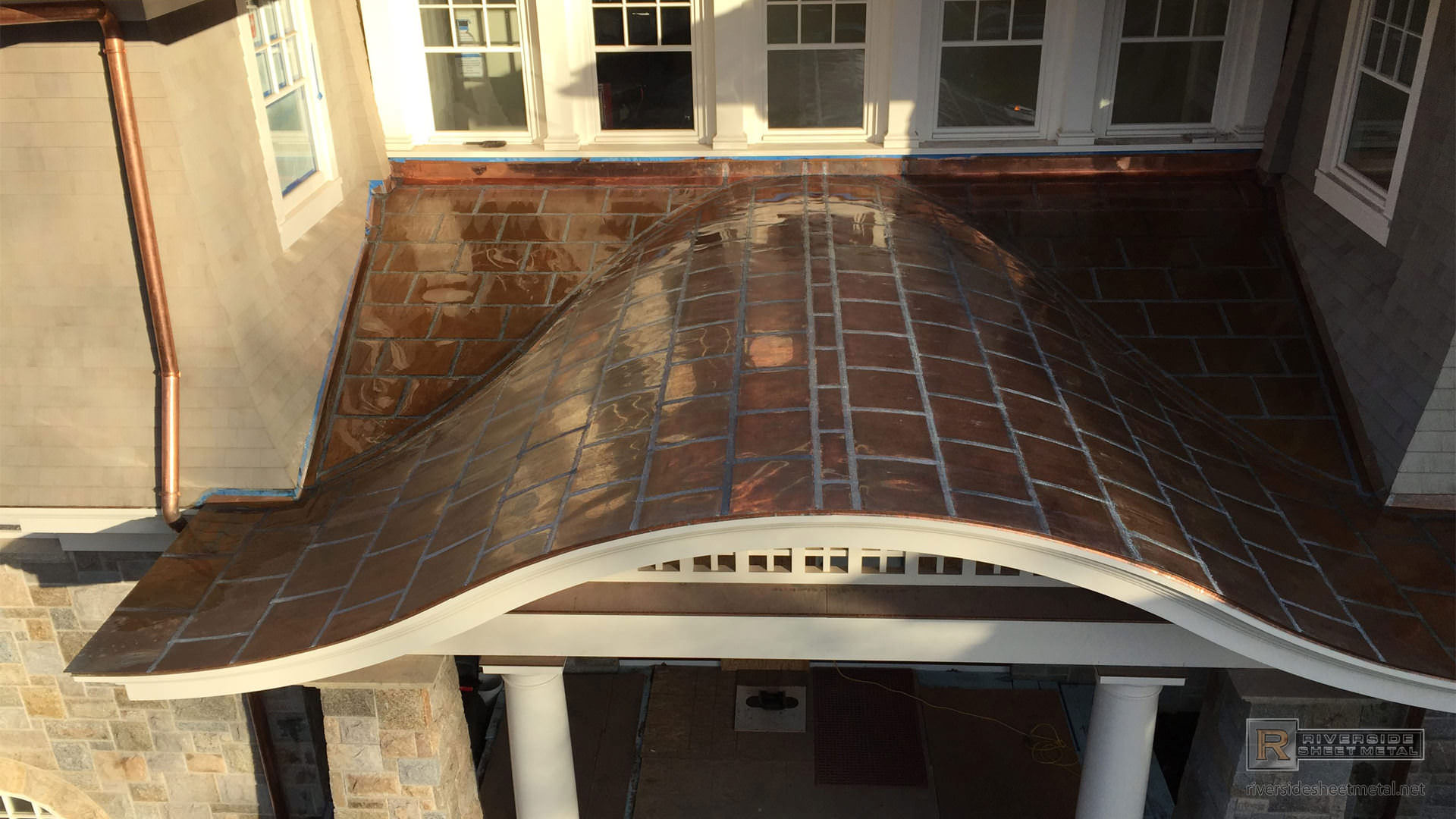

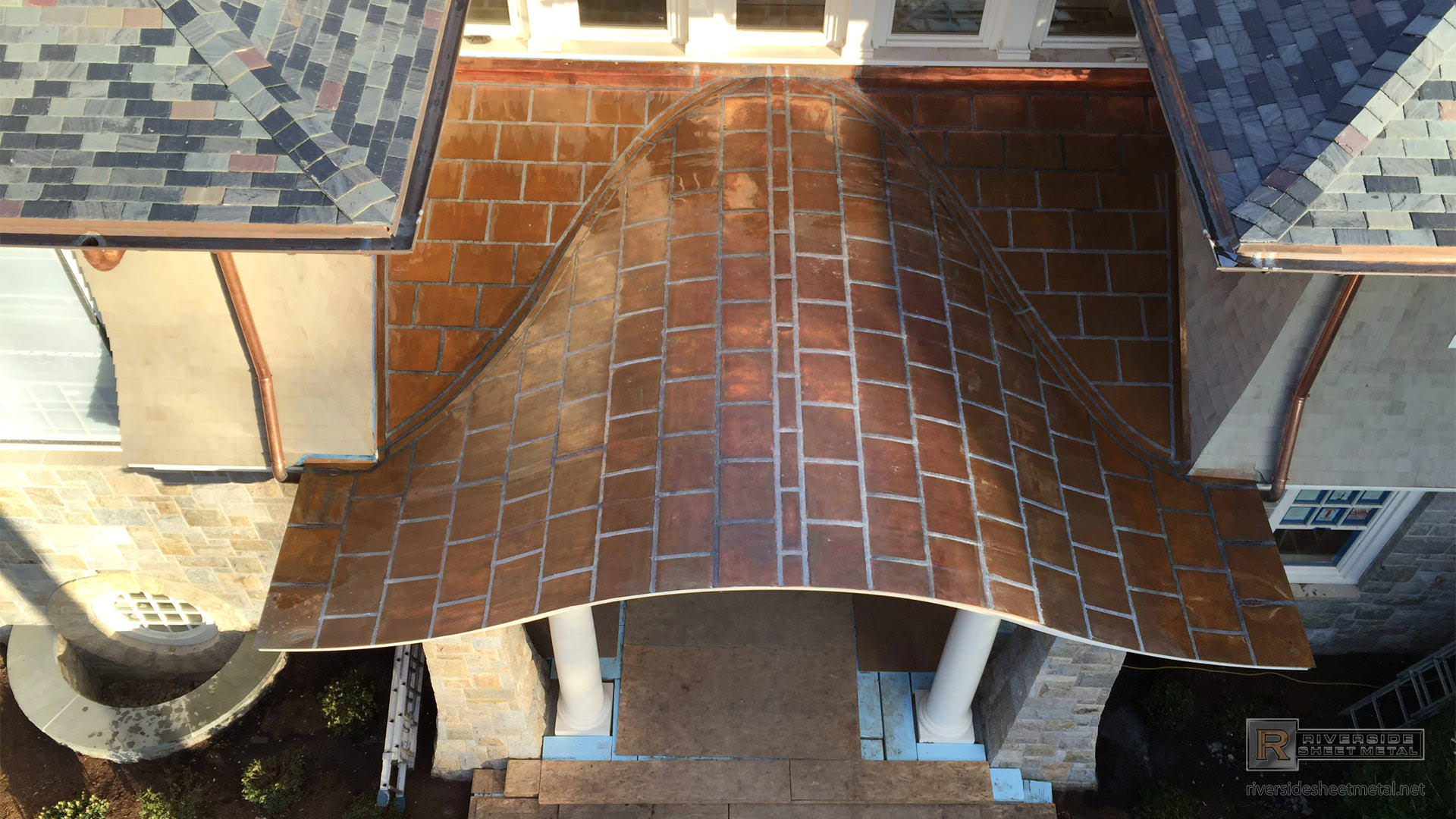

Custom made, and therefore available in any size, the flat locked panel is commonly used where a more monolithic finished surface is desired. You have probably seen it and possibly did not not know what it was. Often made of copper so it's seams can be soldered, it is generally rectangular and panels are normally around 18" x 24" or 24" by 36" in total stock material, and that is because those are even cuts out of a sheet or coil. The flat lock panel also makes a wonderful industrial looking wall panel.

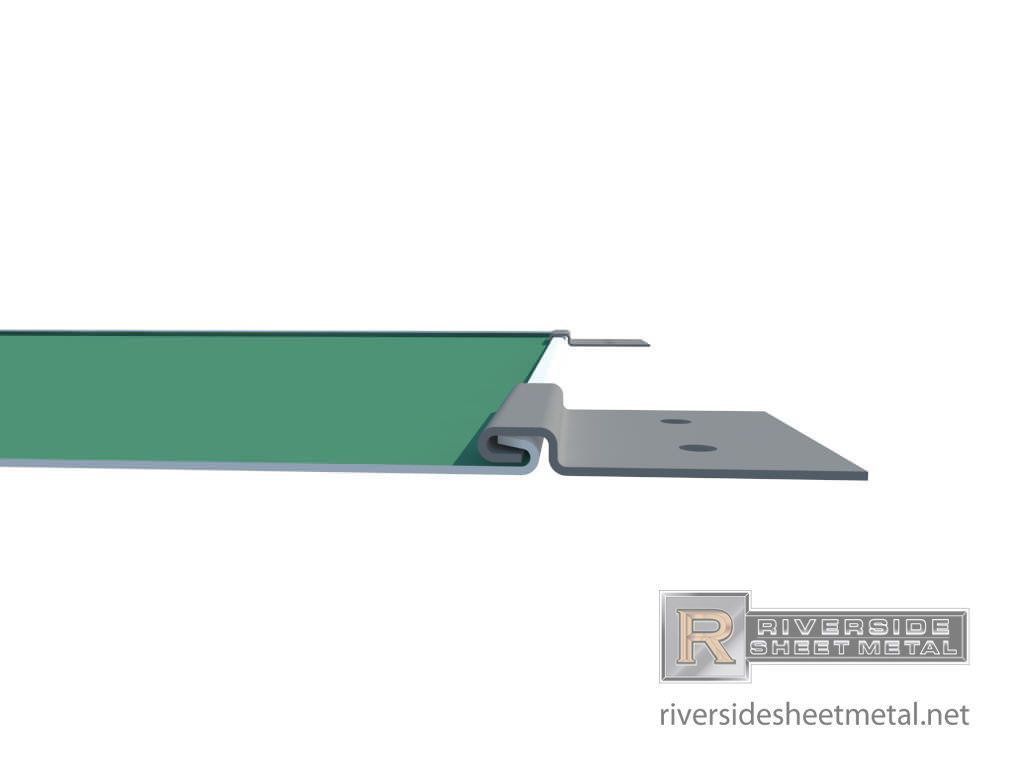

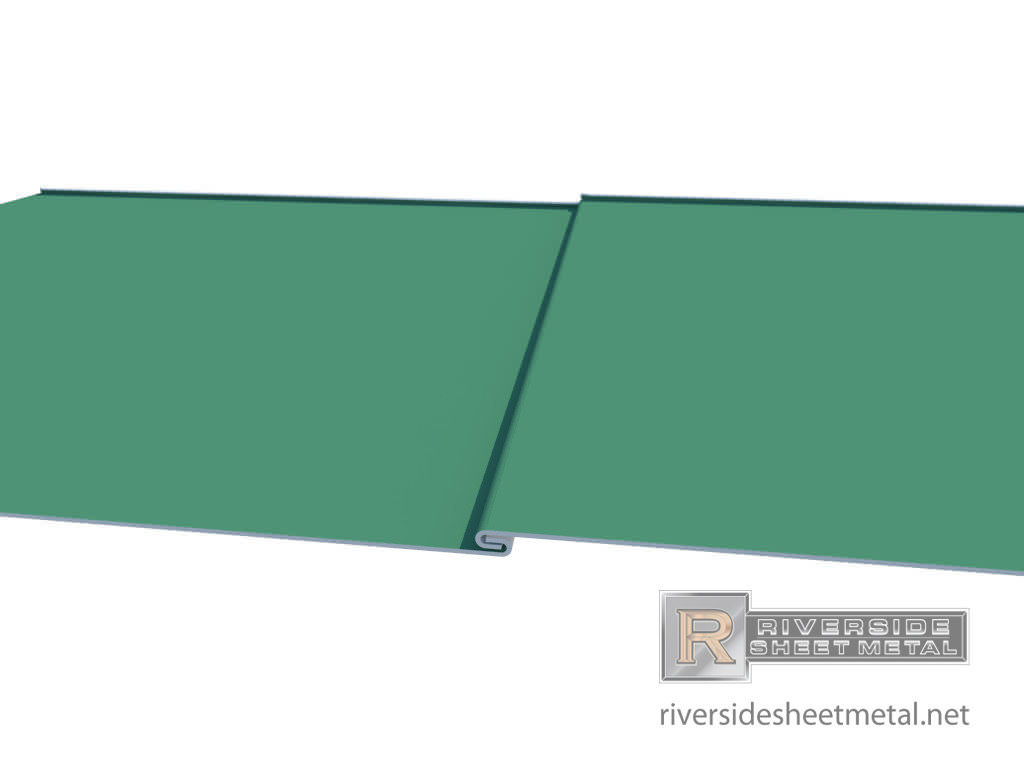

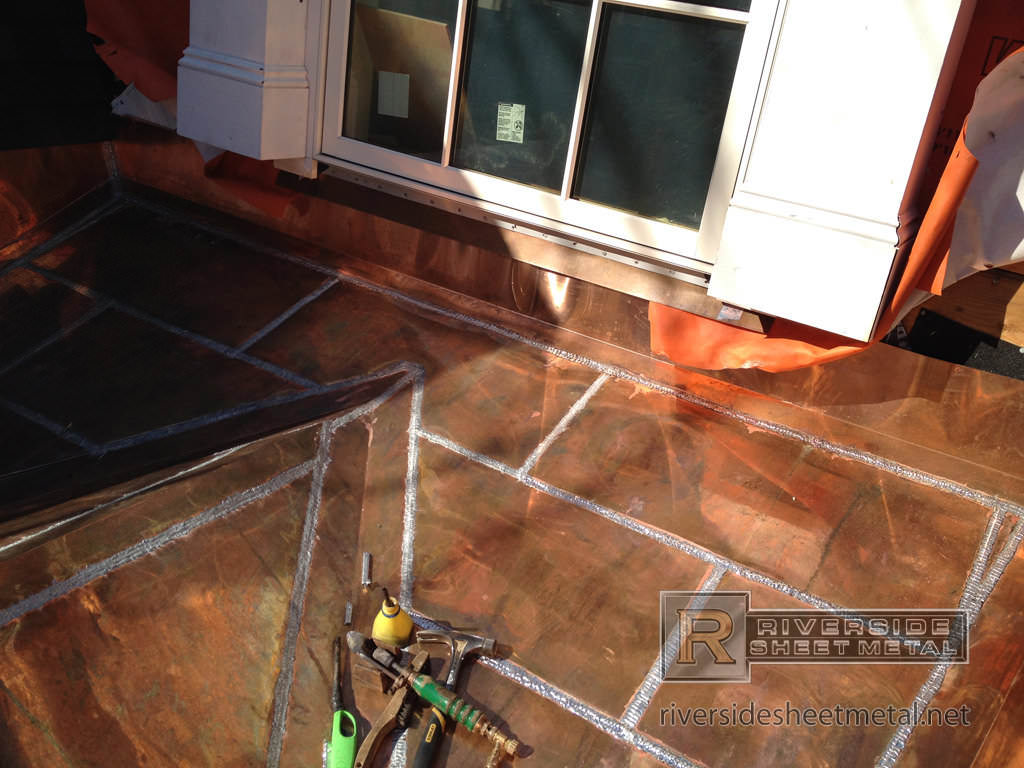

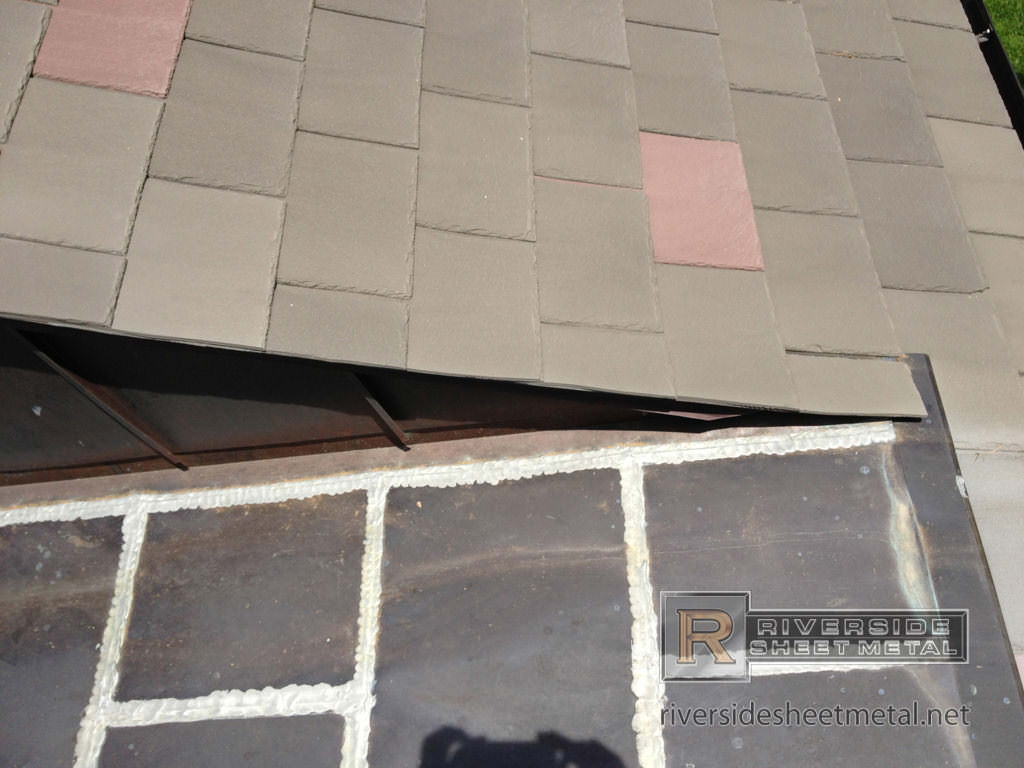

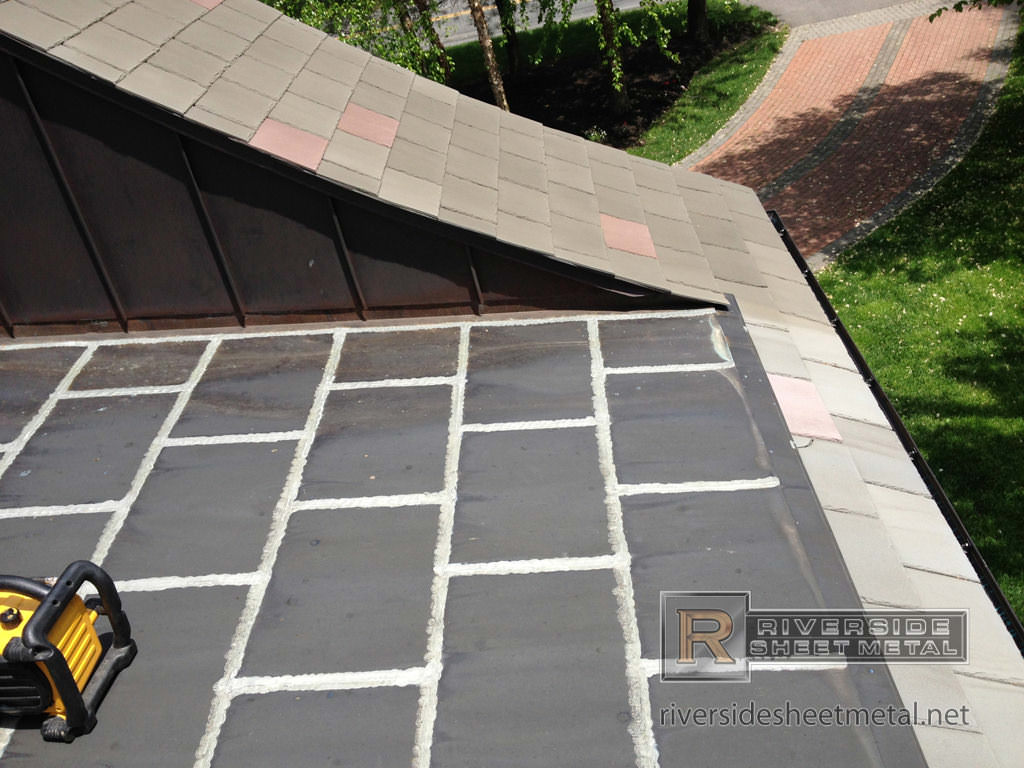

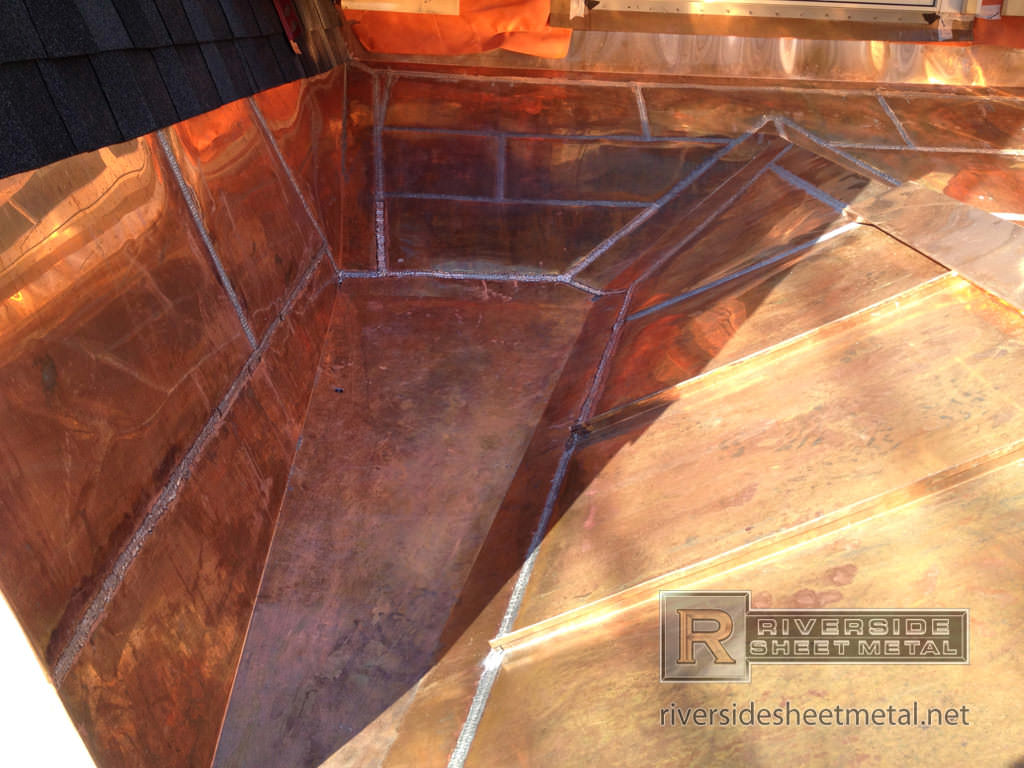

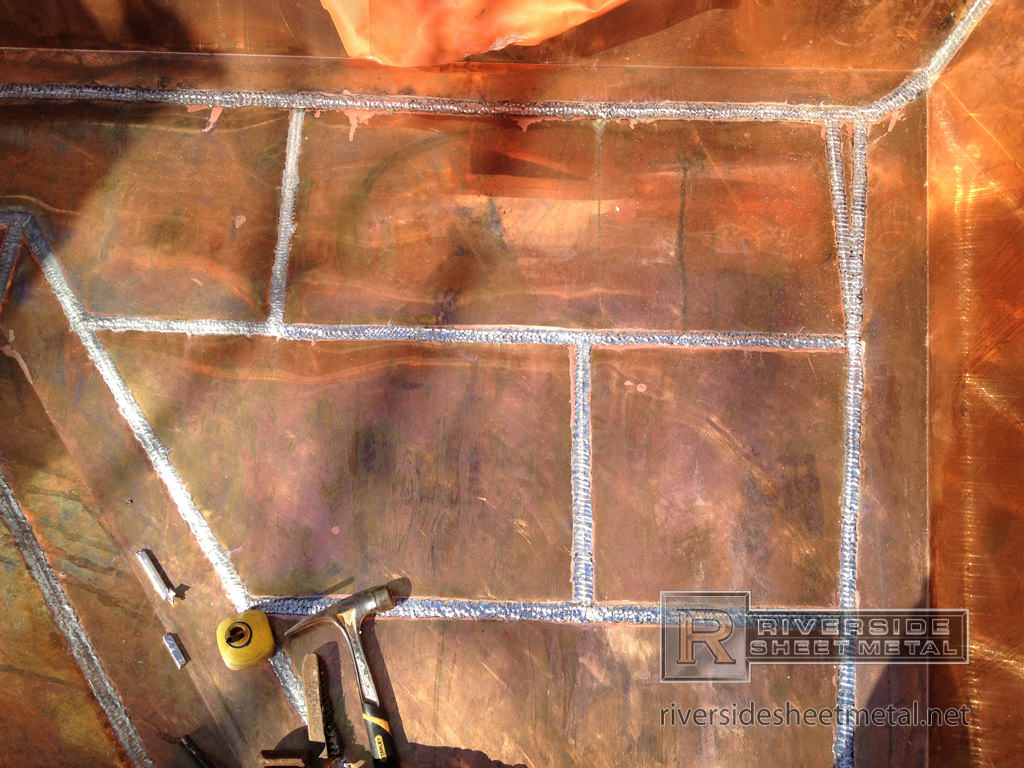

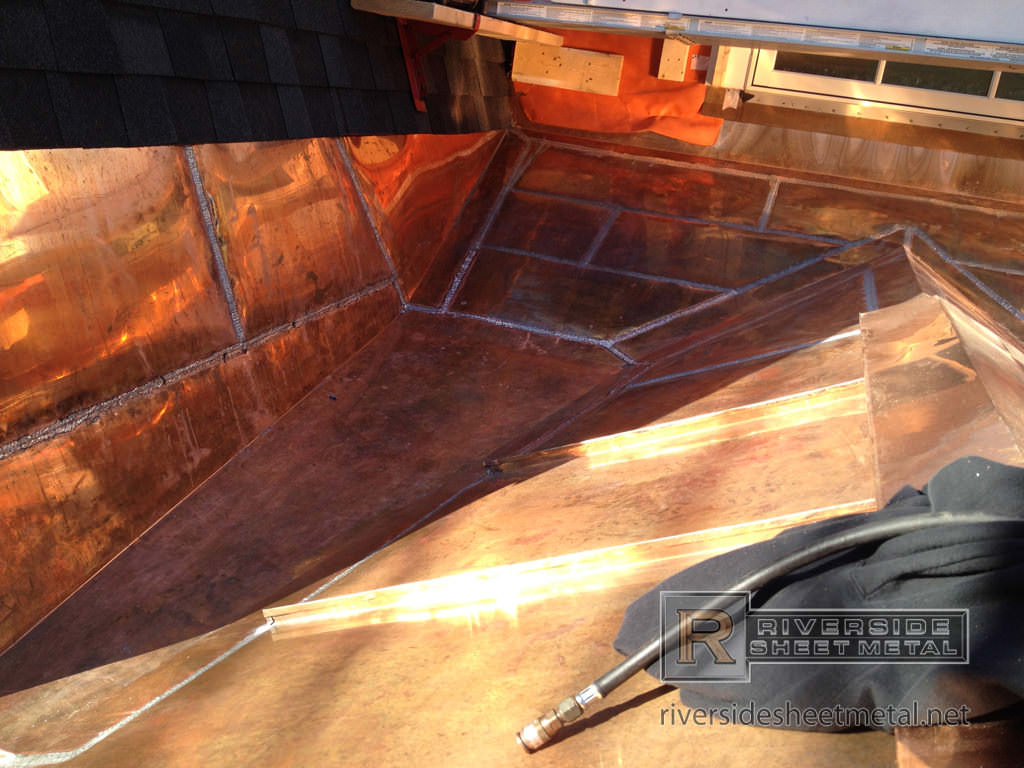

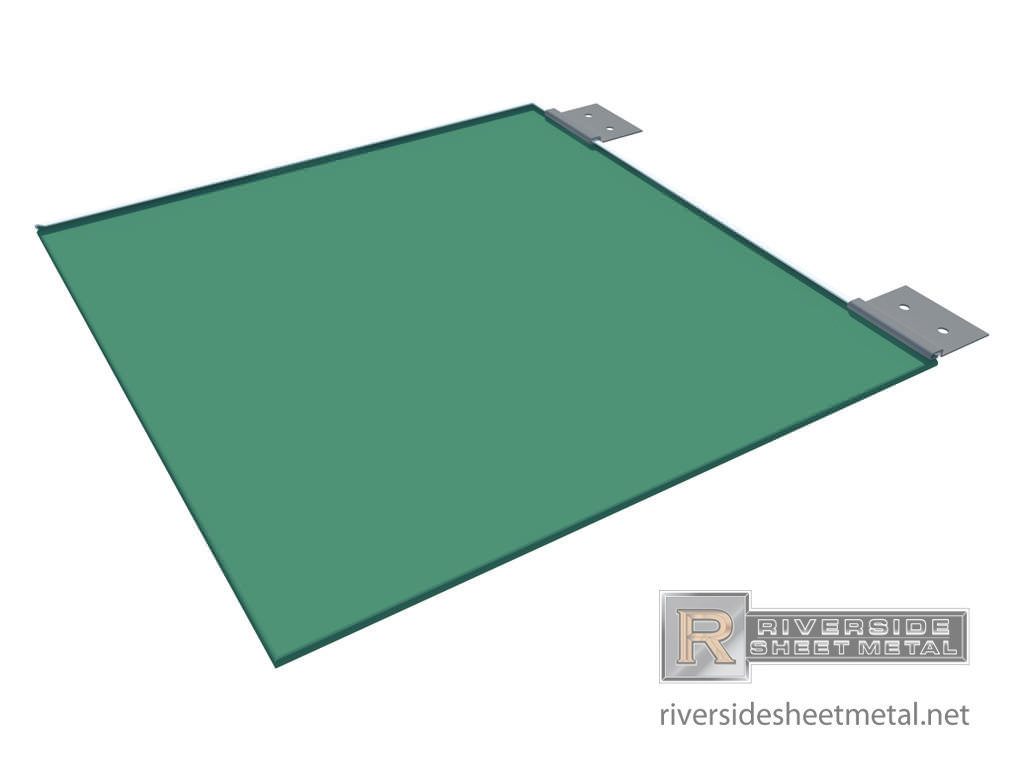

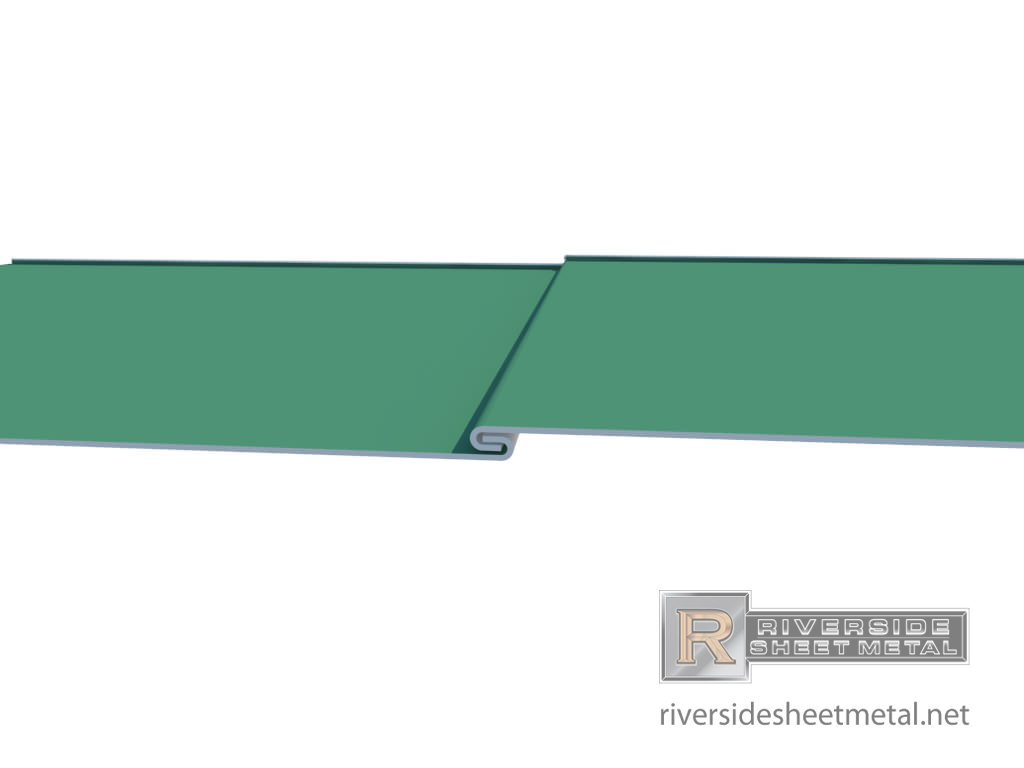

Installation is done via using clips to secure the panels down to a roof or wall. On a roof, the locks are hammered tight and always soldered. It can also be used on walls, without soldering, when manufactured and most importantly, when installed correctly (water directional).

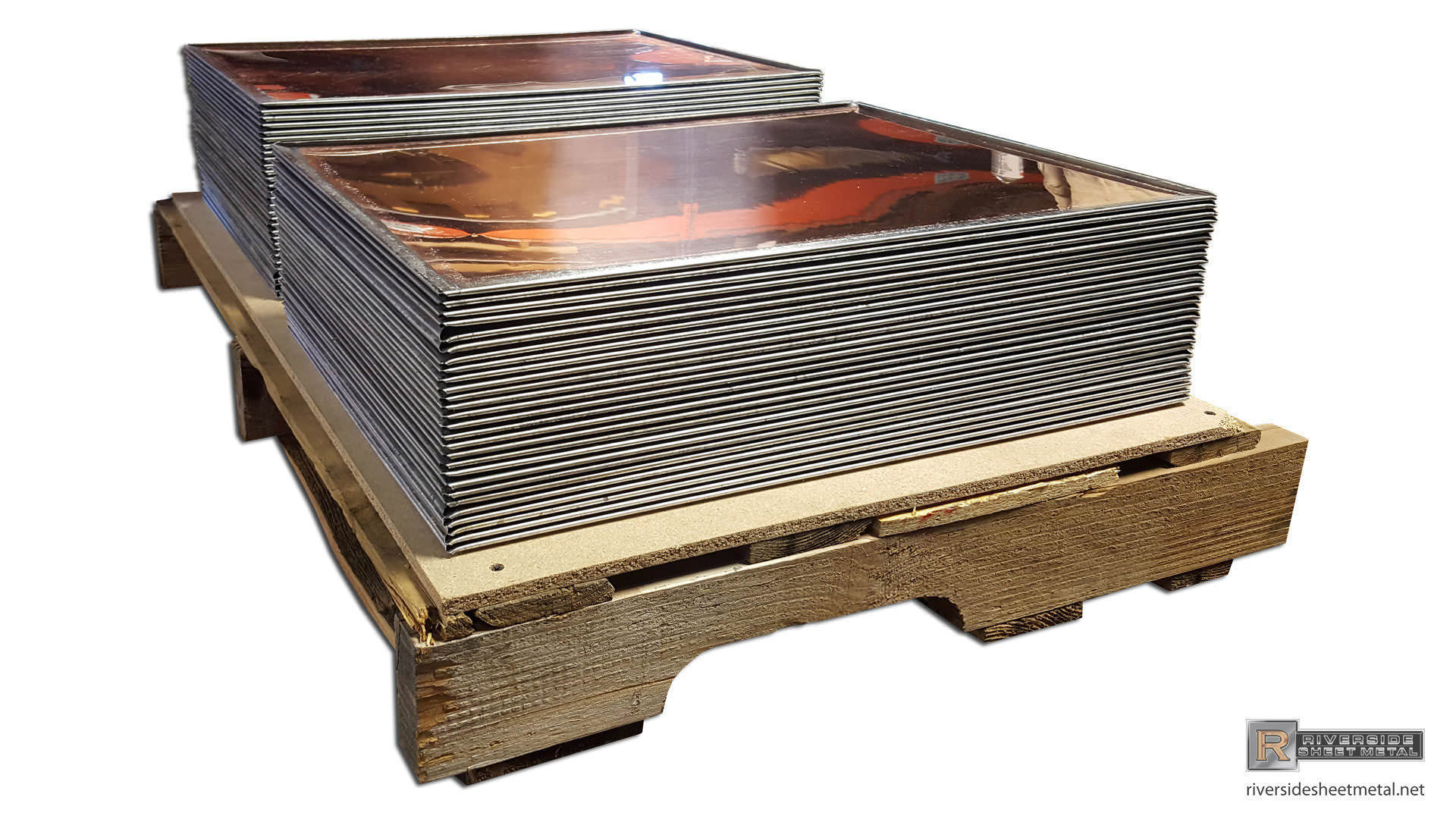

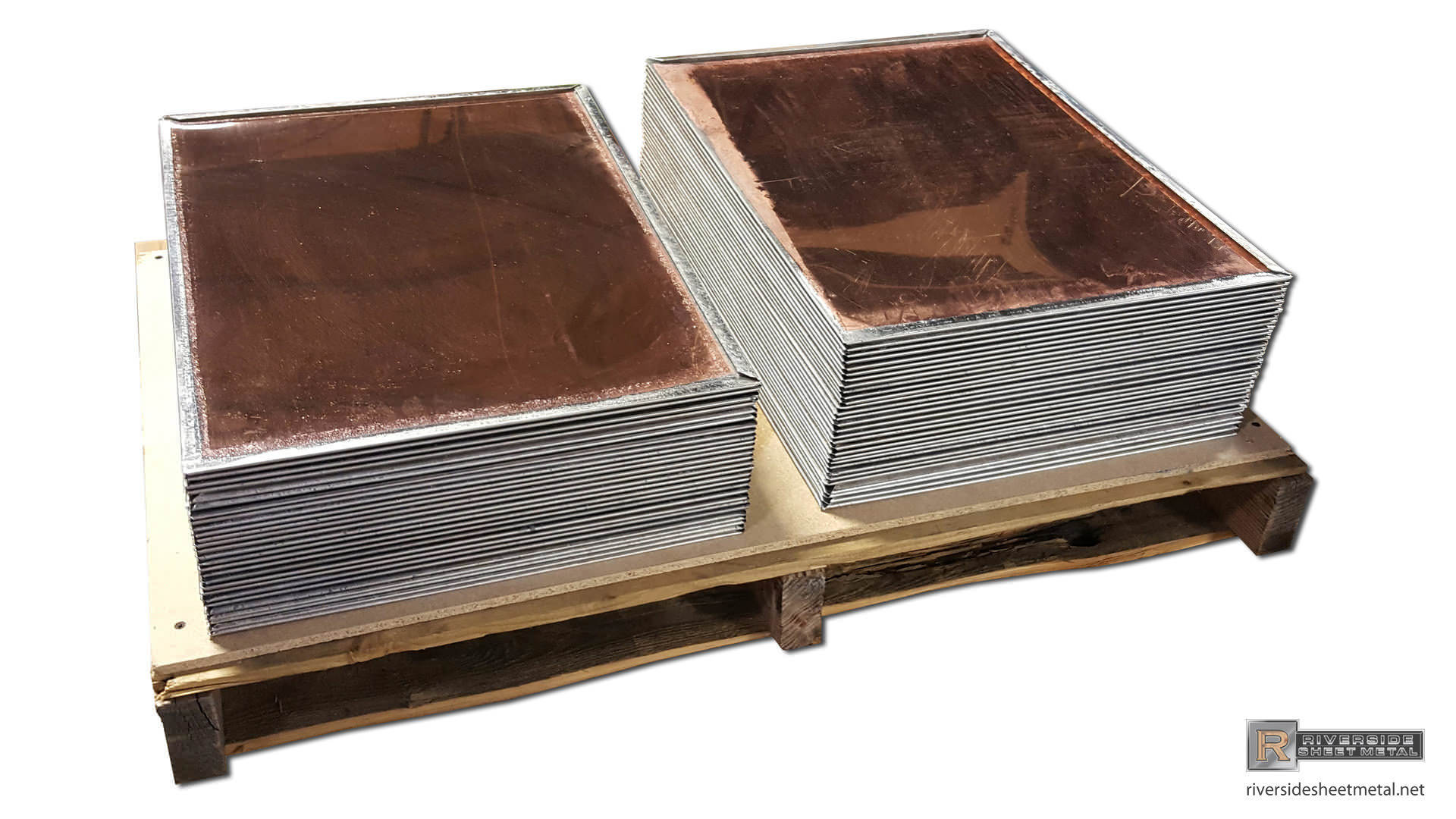

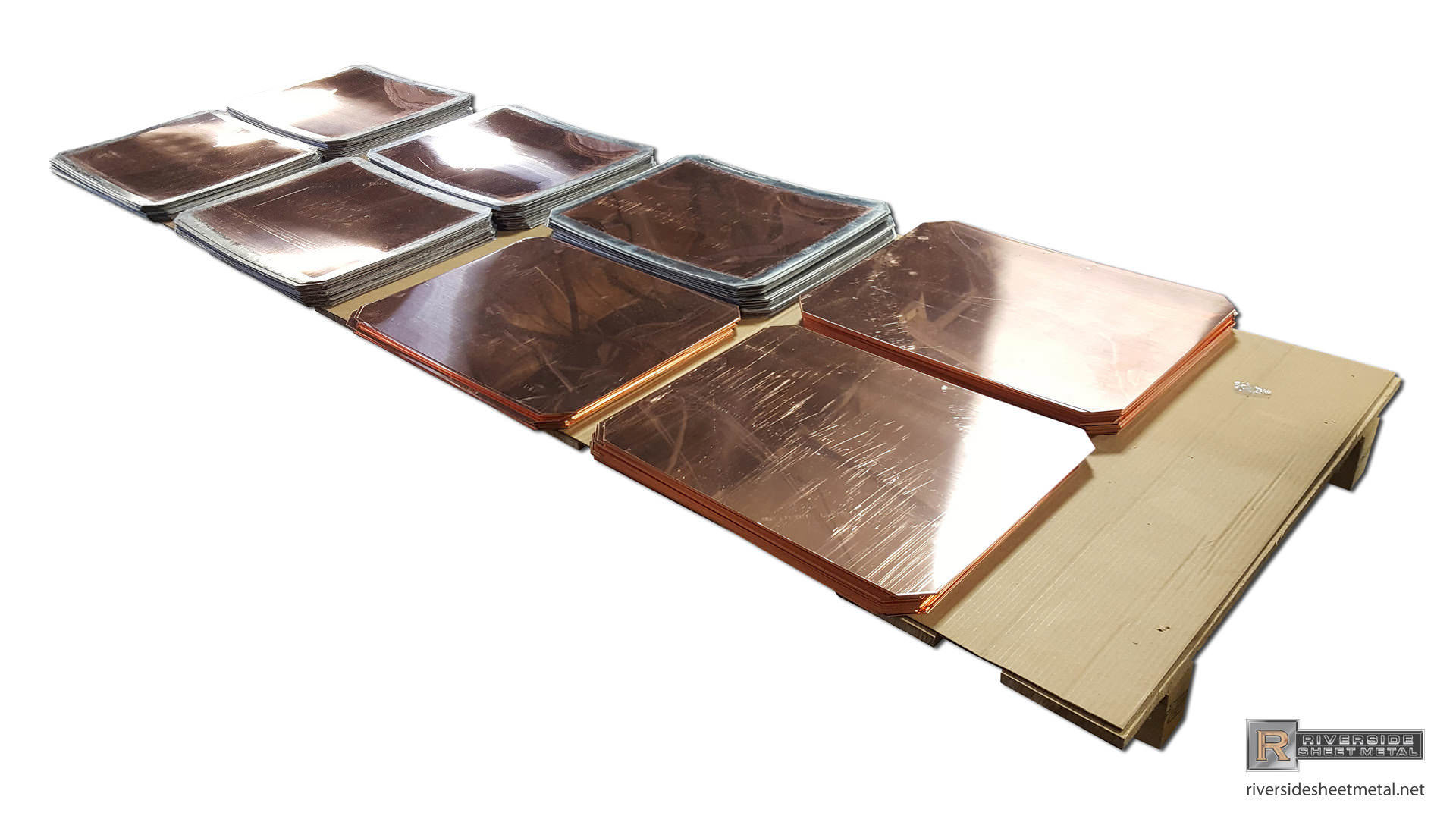

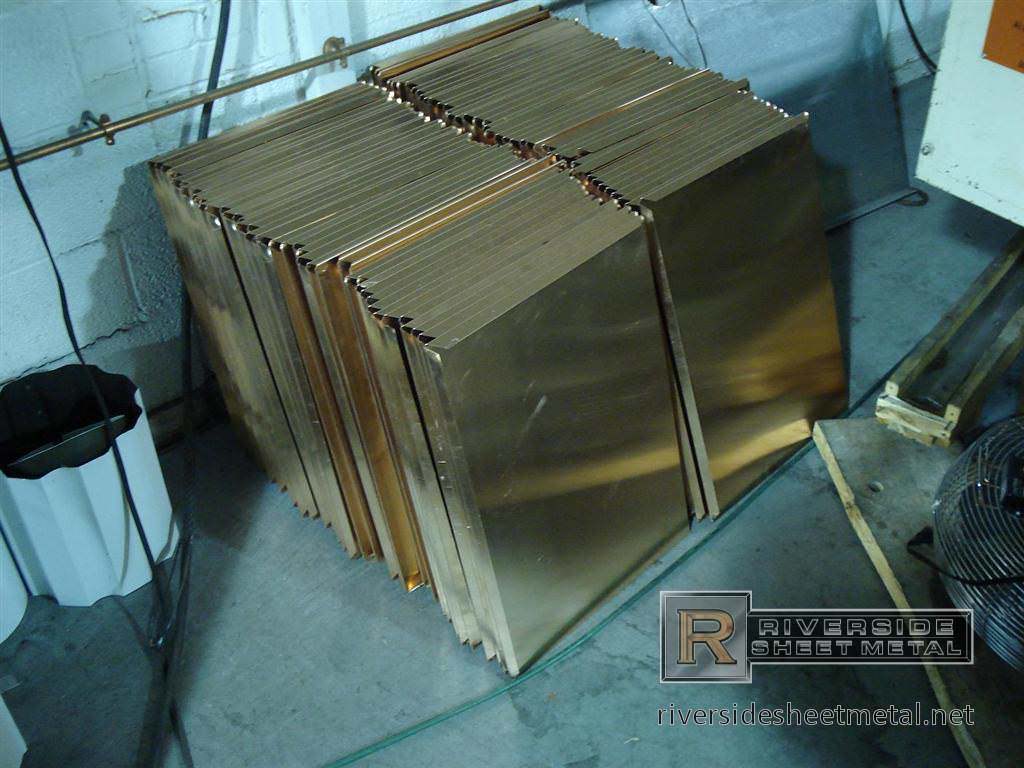

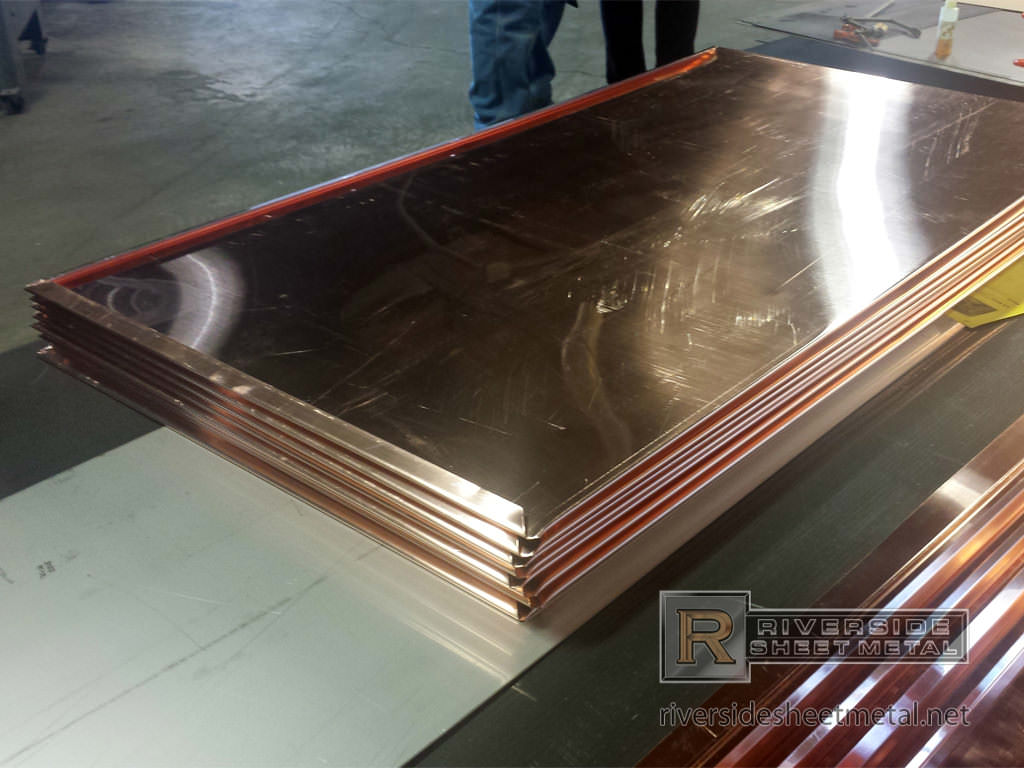

Riverside can manufacture flat lock panels to any size or shape, including radius panels. We can also pre tin the seams for easier soldering.

Riverside also offers installation services in Massachusetts and parts of of New England

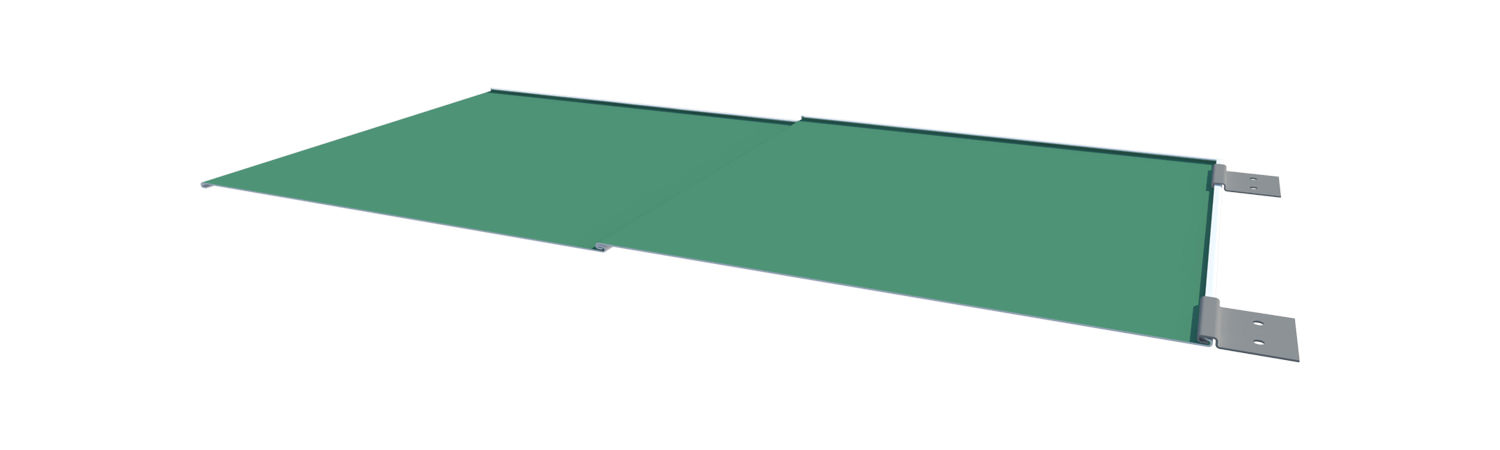

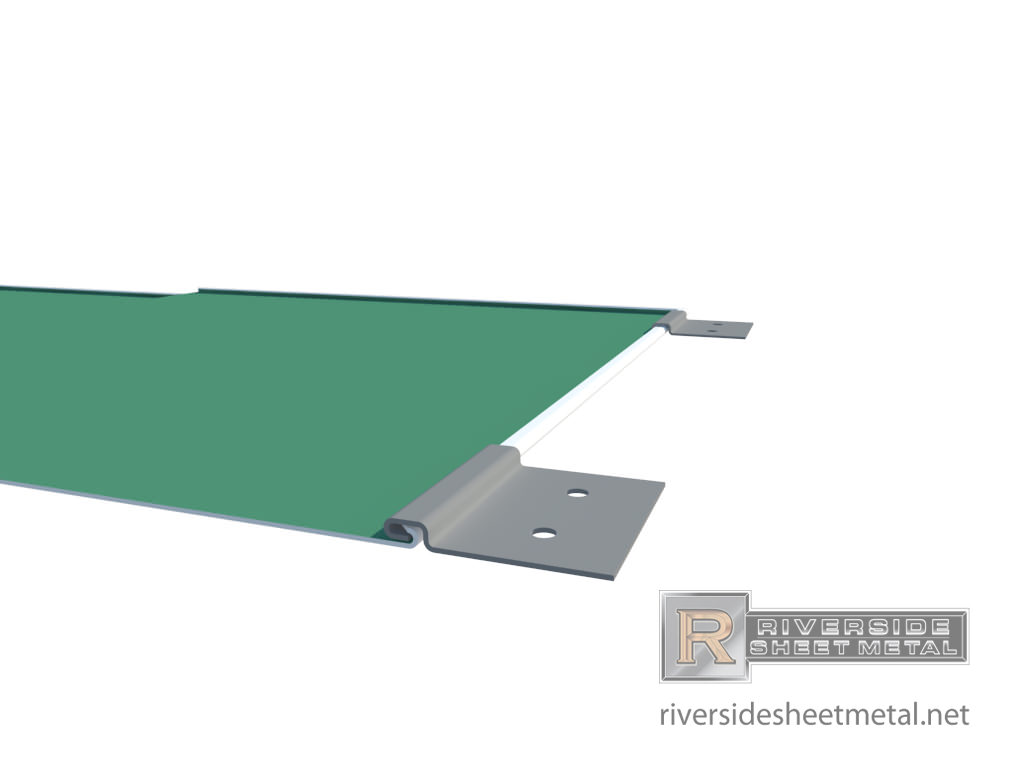

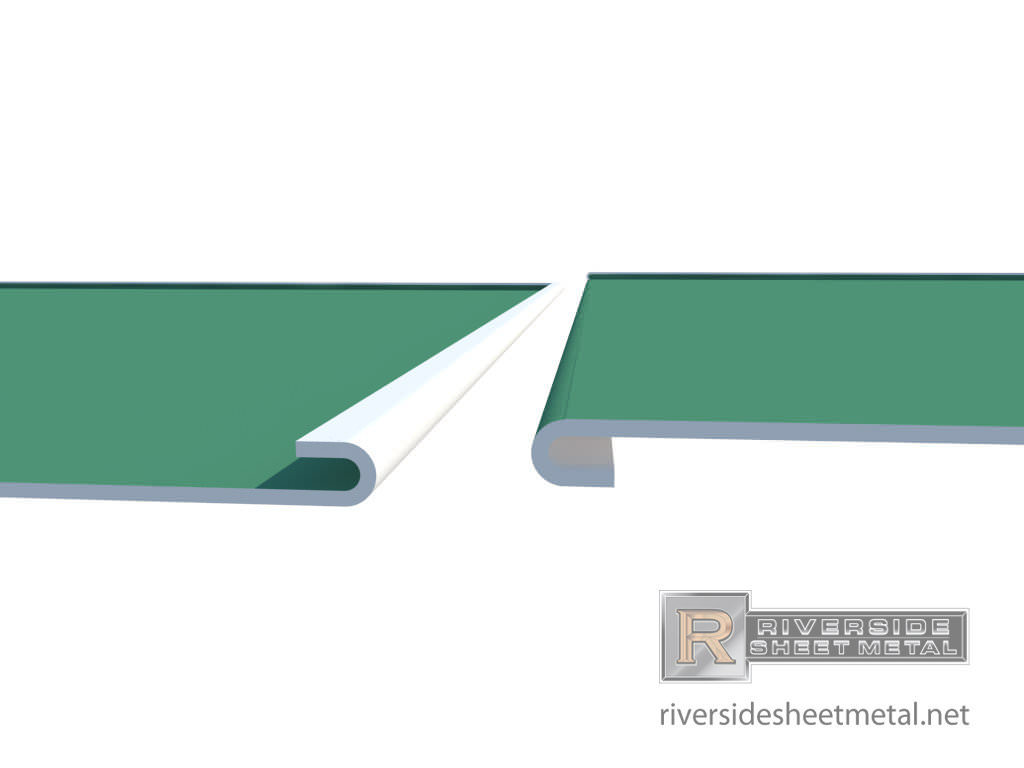

Flat lock roof panel - installation view 1

Product Details

Panel Type Lock size Length Ribs / Striations Radius Tapered
Corrugated roof and wall panels N/A Any Yes N/A N/A
Flat lock roof panels 0.5" to 1" Any N/A Available Available
Standing seam roof panels 1", 1.5" & 2" Any Available Available Available
Snap lock roof panels 1.75" Any Available N/A Available

Metal Roof Panel Sizes:

Coil stocks for panels, are usually available in 18", 20" and 24", as seen in the chart below. Although we can custom slit coils to other dimensions, then offering panels at different widths, the previously mentioned are more easily available with a smaller cost. For odd jobs, we can also manually bend panels up to 12' in length on our Autobrakes, matching any odd width profiles.

Finished Roof Panel sizes and Drawings

Panel Type 18" Coil Stock 20" Coil Stock 24" Coil Stock Other Coil Stock Drawing
Standing seam roof panels (1" Height) 15" Finished Panel 17" Finished Panel 21" Finished Panel Special Order PDF
Standing seam roof panels (1.5" Height) 14" Finished Panel 16" Finished Panel 20" Finished Panel Special Order PDF
Standing seam roof panels (2" Height) 12" Finished Panel 14" Finished Panel 18" Finished Panel Special Order PDF
Snap lock roof panels (1.75" Height) 12" Finished Panel 14" Finished Panel 18" Finished Panel Special Order PDF

Metal roofing products are commonly fabricated with these materials:

Click here for a full list of colors and materials

Riverside offers some of the accessories necessary for installation of standing seam, wall and flat lock roof panels such as clips.


Edge and Flashing Metal:

Metal Roof systems don't consist only of panels. Edge and Flashing metal is required to start and finish the job, and Riverside manufacturers all that is necessary for your project. Normally, to start a job, you will need at least drip edge, to hook your panels onto, J channel (or Z channel if you prefer), either to accept a Ridge Cap, or a Head Wall Flashing and in most cases, you will also also need Valley Flashing.
