Snap Lock Panels - Standing Seam Metal Roofing
Available in many different materials. Custom made on site to any length.

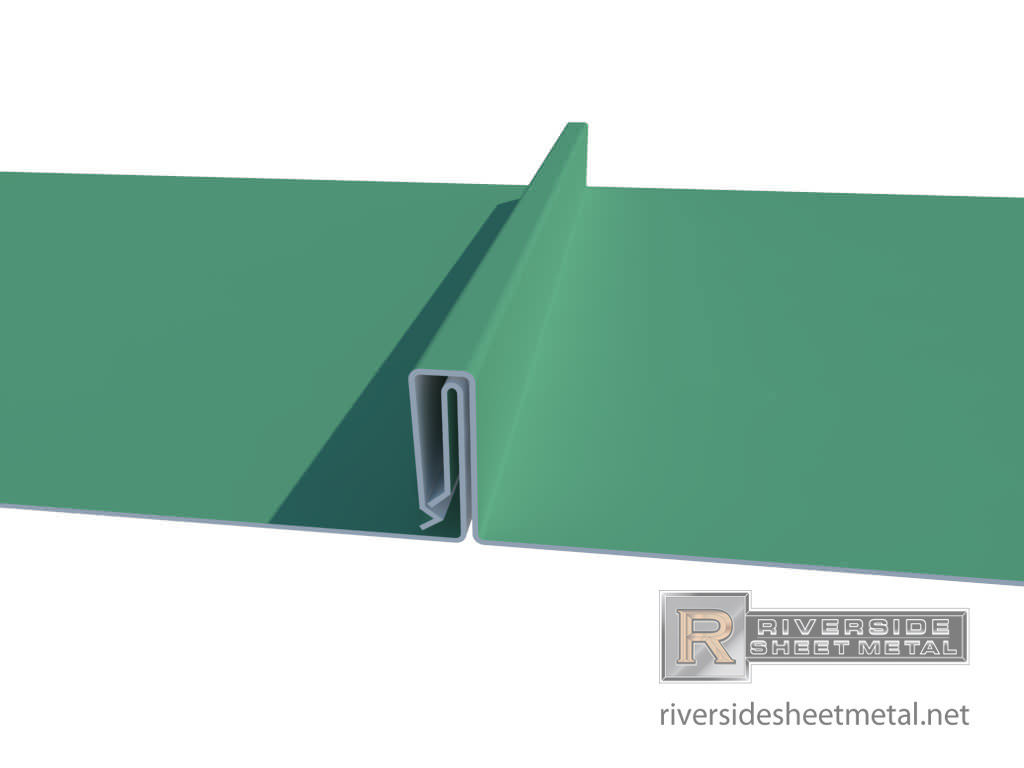

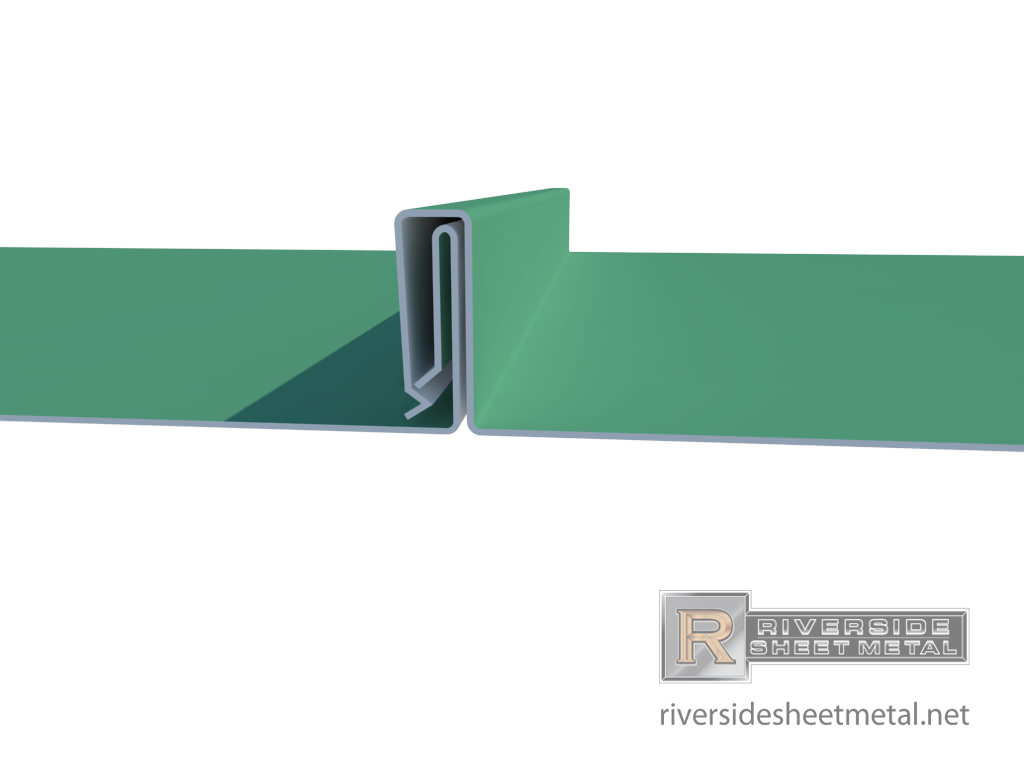

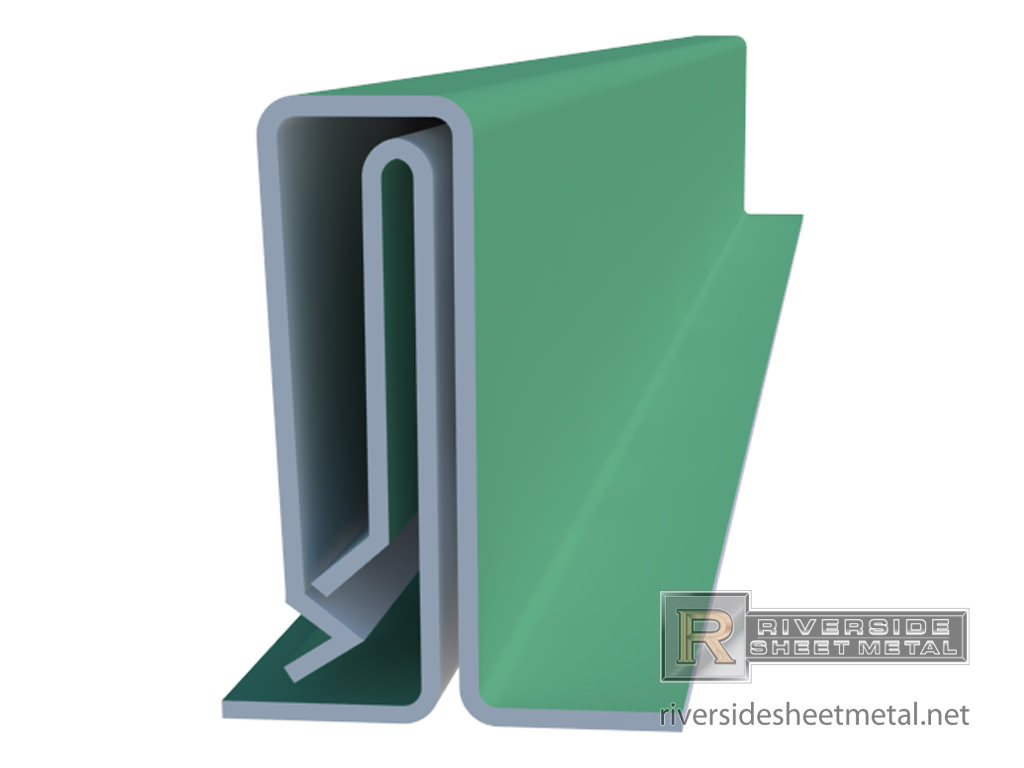

Available 1.75", the integral snap seam panel has a slightly edgier look. Square on the top, it lends itself
more to commercial and contemporary projects. It's "snap together" seaming system makes it
very cost effective, compared to mechanical seaming. Combined with the right metal, this
panel is also one of the best to use in structural situations where no decking is to be used.

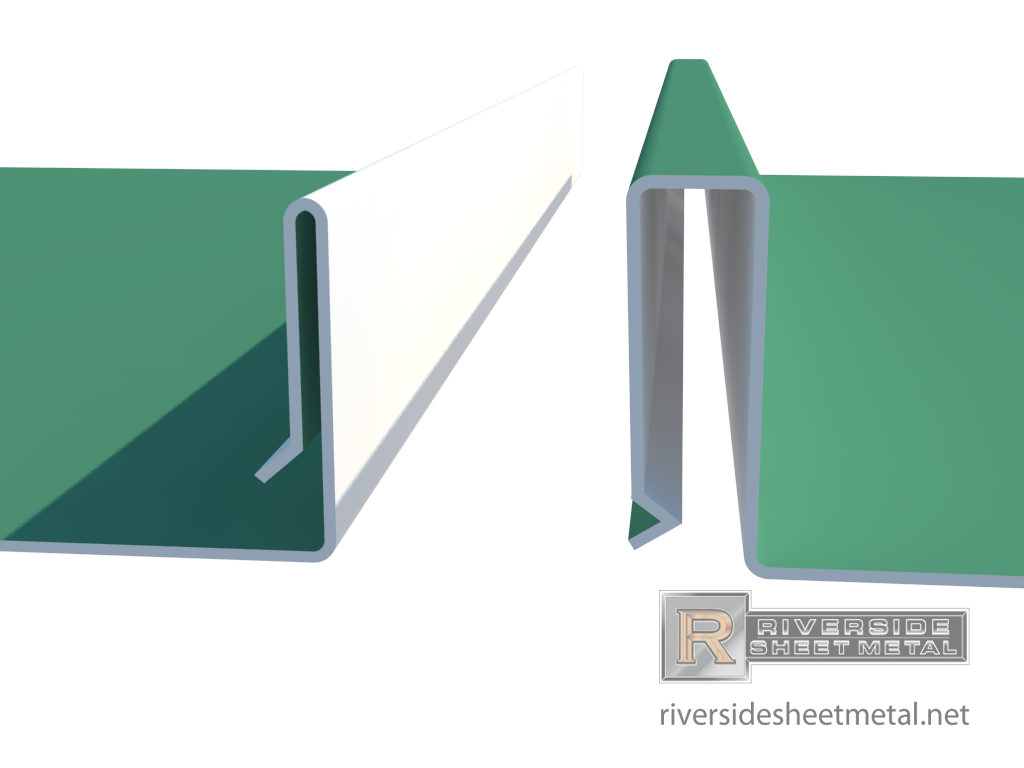

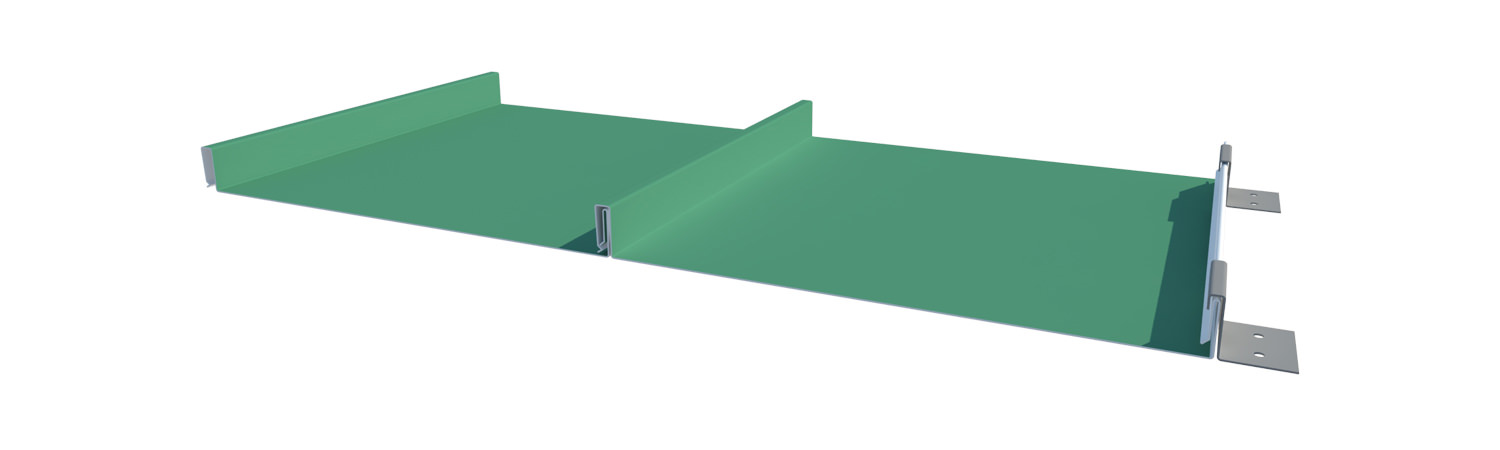

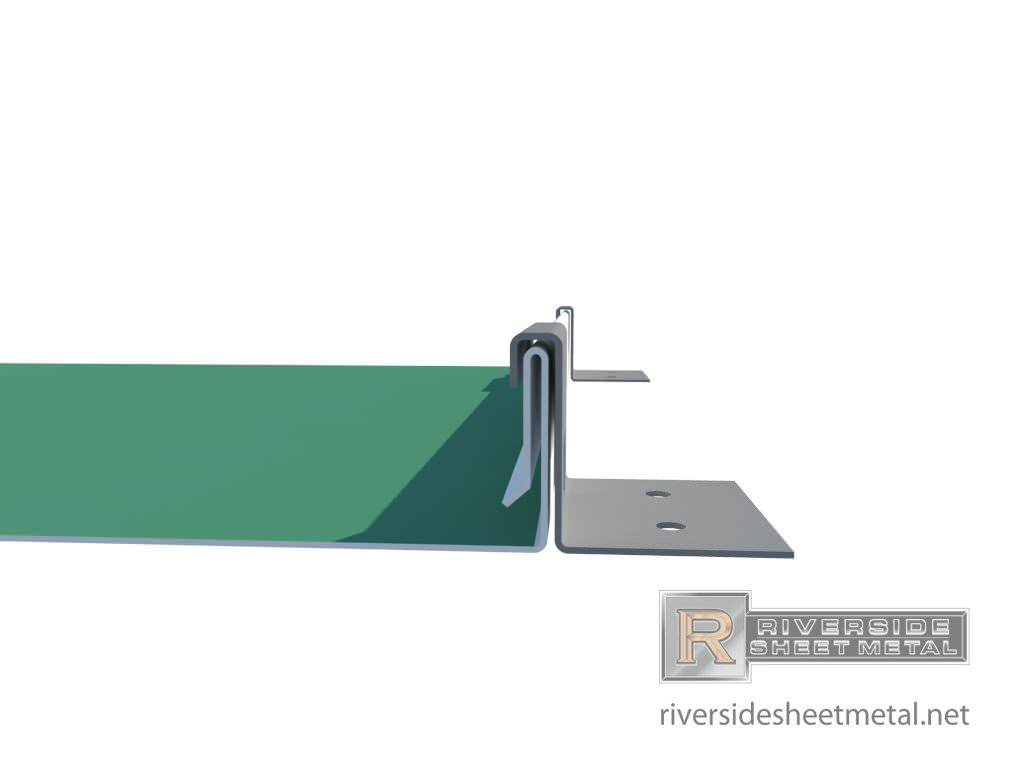

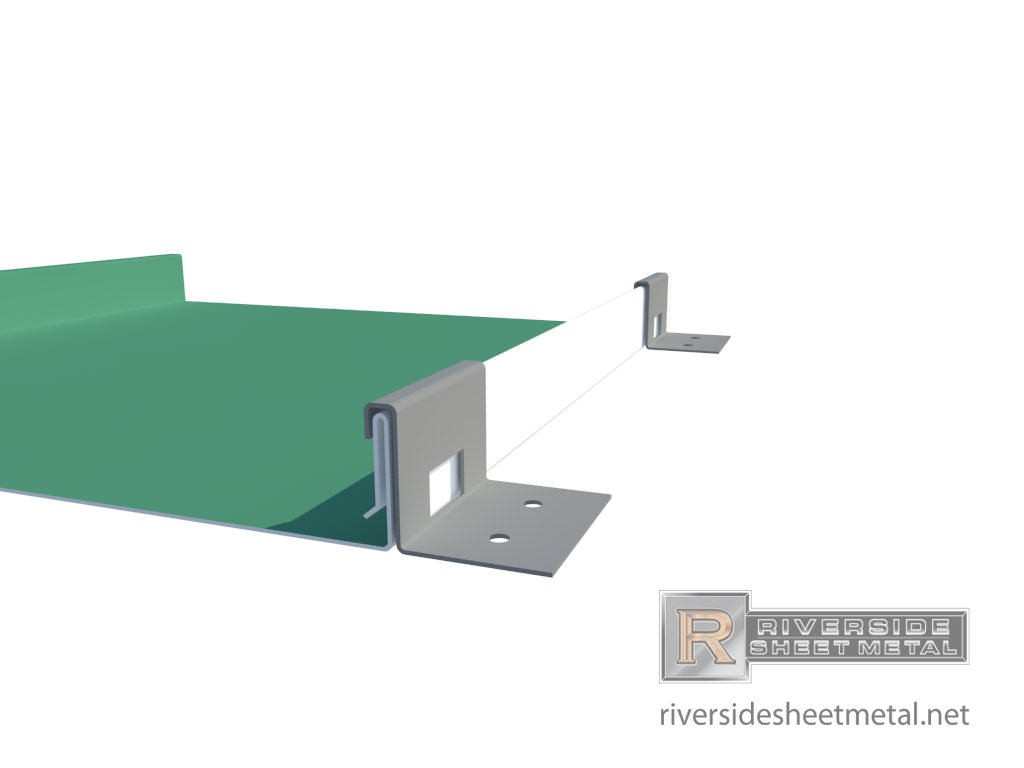

Installation is done via using clips to secure the panels down to a roof and simply
snapping the panels together. No manual locking is necessary, which is why this is the easier choice, compared to the
single and
double lock
standing seam panels.
Riverside has panel machines that will run panels on site to our customers in different sizes, materials and lengths.
We also offer tapered panels that can be manufactured at our location.
Riverside also offers installation services in Massachusetts and parts of of New England
Product Details |
| Panel Type | Lock size | Length | Ribs / Striations | Radius | Tapered |
|---|---|---|---|---|---|
| Corrugated roof and wall panels | N/A | Any | Yes | N/A | N/A |
| Flat lock roof panels | 0.5" to 1" | Any | N/A | Available | Available |
| Standing seam roof panels | 1", 1.5" & 2" | Any | Available | Available | Available |
| Snap lock roof panels | 1.75" | Any | Available | N/A | Available |
Metal Roof Panel Sizes:
Coil stocks for panels, are usually available in 18", 20" and 24", as seen in the chart below.
Although we can custom slit coils to other dimensions, then offering panels at different widths,
the previously mentioned are more easily available with a smaller cost. For odd jobs, we can also manually bend panels up to 12' in length on our Autobrakes,
matching any odd width profiles.
Finished Roof Panel sizes and Drawings |
| Panel Type | 18" Coil Stock | 20" Coil Stock | 24" Coil Stock | Other Coil Stock | Drawing |
|---|---|---|---|---|---|
| Standing seam roof panels (1" Height) | 15" Finished Panel | 17" Finished Panel | 21" Finished Panel | Special Order | |
| Standing seam roof panels (1.5" Height) | 14" Finished Panel | 16" Finished Panel | 20" Finished Panel | Special Order | |
| Standing seam roof panels (2" Height) | 12" Finished Panel | 14" Finished Panel | 18" Finished Panel | Special Order | |
| Snap lock roof panels (1.75" Height) | 12" Finished Panel | 14" Finished Panel | 18" Finished Panel | Special Order |
Metal roofing products are commonly fabricated with these materials:
Riverside offers some of the accessories necessary for installation of standing seam, wall and flat lock roof panels such as clips.

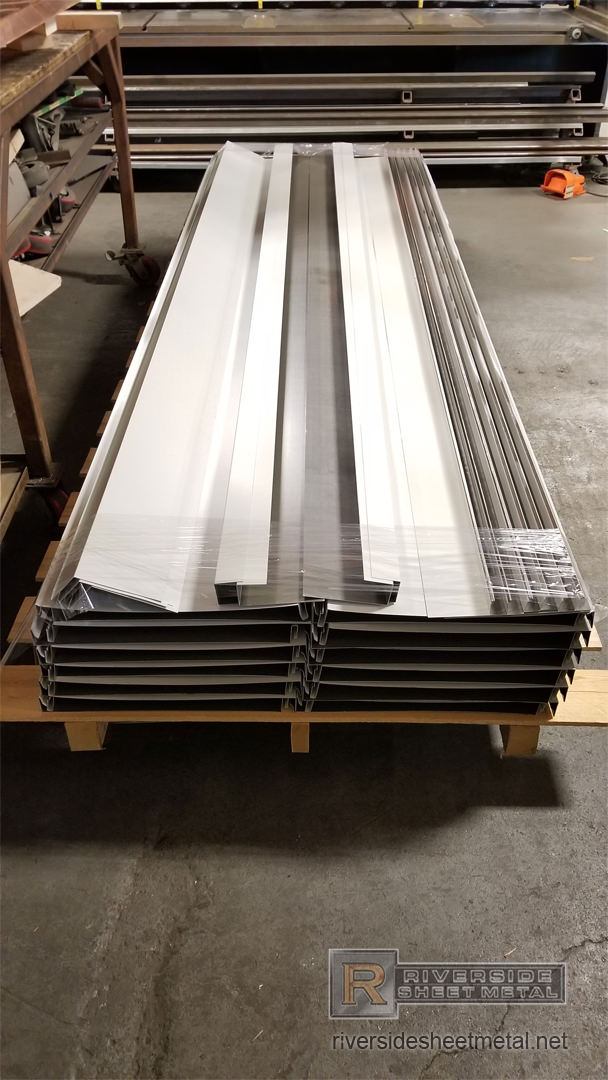

Edge and Flashing Metal:
Metal Roof systems don't consist only of panels. Edge and Flashing metal is required to start and finish the job, and Riverside manufacturers all that is necessary for your project. Normally, to start a job, you will need at least drip edge, to hook your panels onto, J channel (or Z channel if you prefer), either to accept a Ridge Cap, or a Head Wall Flashing and in most cases, you will also also need Valley Flashing.

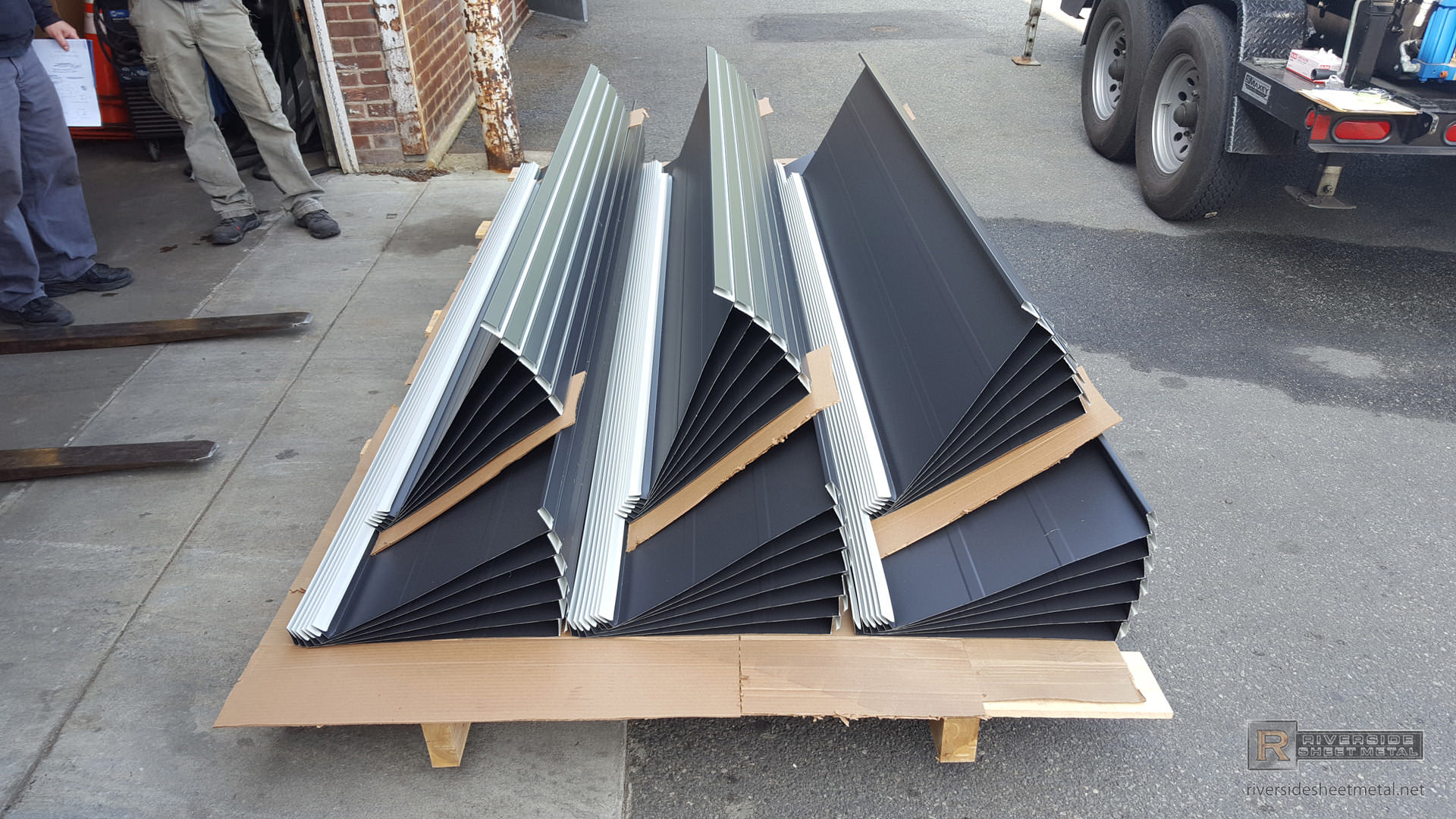

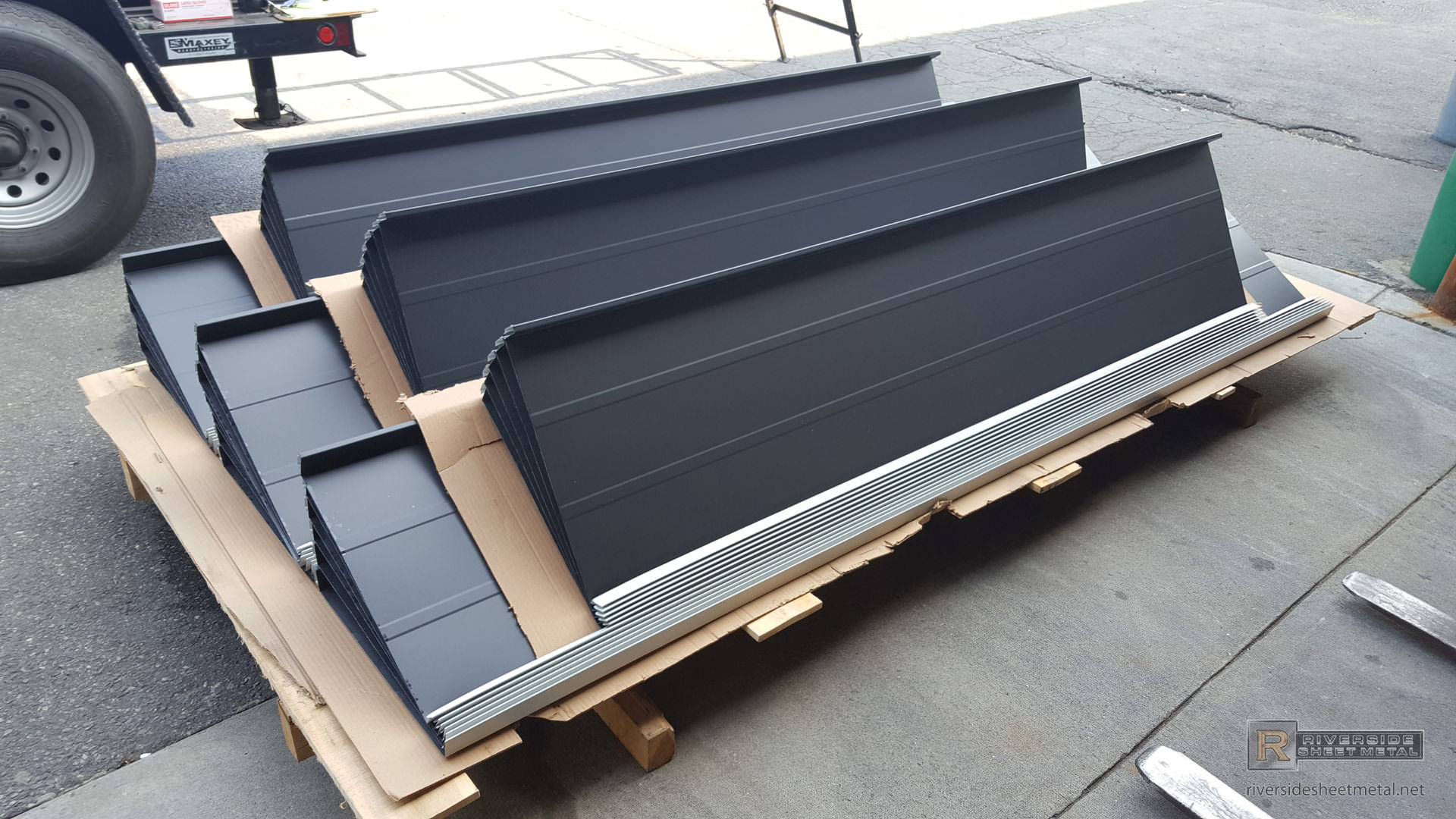

Picture Gallery
